VEGAS Pro Troubleshooting Guide: Common Issues and Solutions

Version: 2026.04  Author: zzzzzz9125

N. Preface

• This article is not a basic tutorial for beginners. It is a guide for troubleshooting various issues in VEGAS Pro and therefore will not extensively cover basic software operations. This article supports the use of licensed software. For information on purchasing a legitimate license, see the Software Purchase Channels section at the end.

• This article is over 10,000 words and covers common issues and solutions for VEGAS Pro. It was first published on Chinese website Bilibili and later summarized and translated into this document for online viewing. If you find any omissions, you can point them out in this post.

• When consulting this guide, it is recommended to use the table of contents to find your issue category and utilize the Ctrl + F search function to search for keywords or error codes for faster resolution. Paths mentioned in this article are generally expressed using environment variables, e.g., %localappdata%\VEGAS Pro\. You can copy and paste the path text into the address bar of Windows File Explorer and press Enter to quickly navigate. This article sometimes mentions specific build numbers for certain versions, e.g., 23 build 302, where 302 is the build number. You can see the current build number on the loading screen when VEGAS starts. Content marked with underline contains hyperlinks.

• This article is licensed under the CC BY-NC-SA 4.0 license. When reproducing, adapting, or using this content in any form, please adhere to the principles of Attribution, NonCommercial, and ShareAlike. For details, please read the Full License Text.

I. About VEGAS Preferences Optimization

"Optimization guides" are no longer listed here because there is no guarantee they provide positive optimization for VEGAS Pro, and some information may be outdated and misleading.

According to official guidance, it is best to keep the default settings, as they are considered optimal for the average user.

There is no one-size-fits-all preference setting. Even if you find so-called "optimization guides" elsewhere, modify them according to your specific situation.

Additionally, I do not recommend directly using registry files or preference files from others that claim to be "optimized preferences."

II. About VEGAS Preferences, Cache Directory, Presets, etc.

VEGAS Preferences and Cache Directory

Note: The following paths use environment variable notation % %. You can copy and paste the path text into the address bar of Windows File Explorer and press Enter to quickly navigate. Actual paths are also provided for reference.

• Main VEGAS cache directory: %localappdata%\VEGAS Pro\
  • i.e., C:\Users\<Username>\AppData\Local\VEGAS Pro\
  • Different versions are stored in separate folders for independence, e.g., %localappdata%\VEGAS Pro\23.0\.

For VEGAS preferences:

• Older versions (VP18 and earlier) are saved in the registry path HKEY_CURRENT_USER\Software\Sony Creative Software\VEGAS Pro\<version>\Metrics\Application\, which is difficult to edit manually. For backup, you can use the Registry Editor (regedit) to manually back up all contents under that registry path.

• Newer versions (VP19 and later) are saved in the cache directory file %localappdata%\VEGAS Pro\<version>\persist.prefs. The file content is in XML format, making it easier to edit manually. You can copy this file for backup.

Other directories containing VEGAS-related settings and preset files for manual backup:

• Saved FX presets, plugin chain presets, FX favorites, render templates, etc.: %appdata%\VEGAS\
  i.e., C:\Users\<Username>\AppData\Roaming\VEGAS\

• VEGAS window layouts, keyboard settings, etc.: %appdata%\VEGAS Pro\
  i.e., C:\Users\<Username>\AppData\Roaming\VEGAS Pro\

• Saved OFX plugin FX presets: %userprofile%\Documents\OFX Presets\
  i.e., C:\Users\<Username>\Documents\OFX Presets\
  or OneDrive path: C:\Users\<Username>\OneDrive\Documents\OFX Presets\

• Additionally, if your Vegas frequently crashes, it is recommended to check: %localappdata%\CrashDumps\
  i.e., C:\Users\<Username>\AppData\Local\CrashDumps\
  Windows saves crash information .dmp files here. These crash information files take up a lot of space and are not useful for ordinary users, so they can be deleted directly.

VP13 and earlier versions have cache directories within a Sony folder, e.g., %localappdata%\Sony\VEGAS Pro\, etc.

For other important paths, refer to: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/tutorials/backup-locations-for-all-vegas-pro-templates-presets-and-settings--139290/

Using, Importing, and Exporting VEGAS Plugin Chain Presets

Install and use Sony Preset Manager.

• Download link: https://web.archive.org/web/20160826164938/http://dspcdn.sonycreativesoftware.com/current/extras/presetmngr20k.exe

Accessing VEGAS Internal Preferences

• VP18+: Hold Shift, then go to the top menu Options -> Internal.

• VP17-: Hold Shift, then go to the top menu Options -> Preferences, switch to the Internal tab.

III. Solutions for Crashes, Freezes, Error Pop-ups Caused by Bugs

(The solutions provided here are general troubleshooting steps. They may not solve every problem.)

1. Disable GPU Acceleration

Preferences -> Video, under GPU acceleration of video processing, select Off. This option primarily manages whether video FX use GPU acceleration. While GPU acceleration can make FX preview and rendering smoother, it has more bugs in lower VEGAS versions and is prone to causing crashes. When troubleshooting, first try disabling GPU acceleration. For newer VEGAS versions (e.g., 22 build 250), it's still recommended to enable it if your GPU performance is good and there are no other issues.

2. Disable VEGAS Error Reporting Pop-up

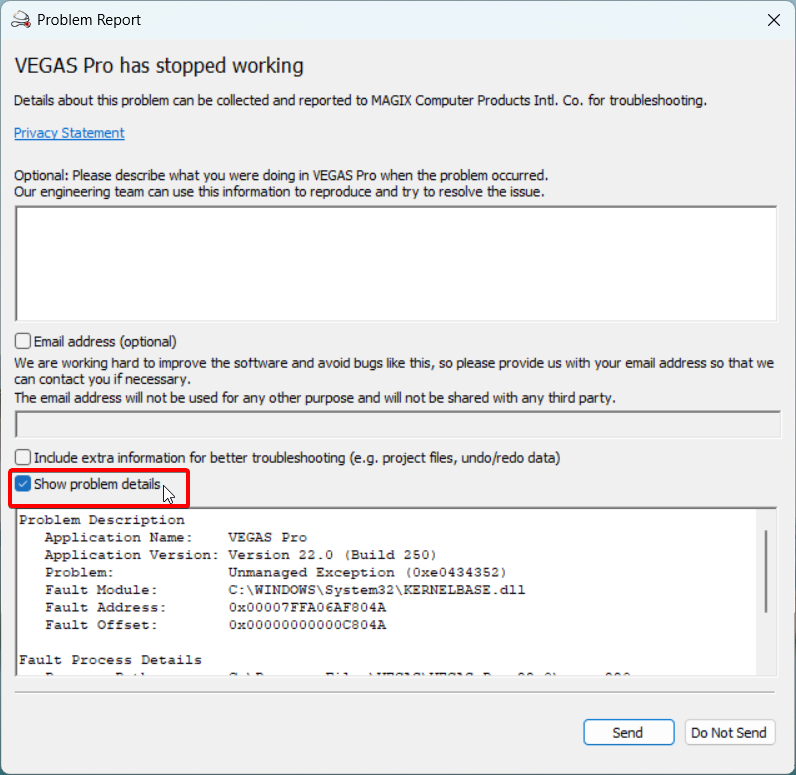

A common scenario: When running VEGAS / clicking File -> Render As, an error pop-up appears immediately.

Problem Report

In this case, always check the box for Show Problem Details first to get the error content.

Sometimes the error reporting feature itself might be the problem. Completely disabling it can help.

Two ways to disable error reporting pop-ups:

• Locate the ErrorReportClient.exe file in the VEGAS installation directory and rename it.

• Locate and run PRSConfig.exe in the VEGAS installation directory, select Disabled.

Either method will disable VEGAS error reporting pop-ups.

Sometimes the issue may persist. If so, re-enable it and focus on analyzing the error content. The error content can sometimes provide useful clues. See Troubleshooting Ideas for Specific Errors.

3. Reinstall VEGAS

Reinstalling VEGAS only addresses problems where the software itself was not fully installed or program files are corrupted, so it's rarely needed. Reinstalling alone does not reset preferences.

4. Reinstall Hardware Drivers

Software issues can sometimes be caused by hardware drivers. For audio problems, try reinstalling your sound card drivers. For video problems, try reinstalling your graphics card drivers.

5. Reset Preferences

Encountering inexplicable issues, like imported audio being completely noisy, can sometimes be resolved by resetting preferences.

Resetting will clear: [All preferences and cache for the current VEGAS version].

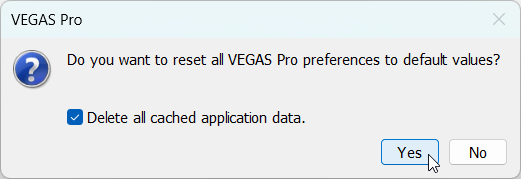

The standard method: Hold Ctrl + Shift and run VEGAS. A "Reset?" prompt will appear. Check Delete all cached application data and click Yes.

Reset

Reset? (Y/N)

However, resetting this way does not create a backup of your previous preferences. The original preferences will be completely cleared, which carries some risk. Therefore, I recommend backing up your preferences before resetting. See VEGAS Preferences and Cache Directory.

6. Install Microsoft Visual C++ and .NET Framework Runtimes

Microsoft Visual C++ Redistributables: https://learn.microsoft.com/cpp/windows/latest-supported-vc-redist

.NET Framework Repair Tool: https://support.microsoft.com/topic/942a01e3-5b8b-7abb-c166-c34a2f4b612a

7. Try a Different Version

Whether a VEGAS version suits your PC is somewhat random.

The most stable version is widely considered to be VP13. For a balance of stability and features, VP18 is recommended. Newer versions are not guaranteed to be stable. Since the video engine update in 21 build 300, VEGAS's slow video decoding and rendering issues are being gradually addressed. This improvement continues through VP22's final version. Currently, I most recommend the VP22 final version (22 build 250), as it has significant improvements. The latest VP23 is still not very stable.

VEGAS Pro / VEGAS Post Release History: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/vegas-pro-vegas-post-release-history--104998/

8. Troubleshooting Ideas for Specific Errors

If you've tried almost all methods in this article (especially those in the VEGAS Software Operation Q&A chapter) and the error persists, try this section's approach. Some errors, like 0xC0000005, have no fixed, definite cause. Encountering such errors and finding that most solutions here don't work is perfectly normal. Searching online for the error code yields many solutions, but finding one that actually works can be like finding a needle in a haystack. This section provides a general troubleshooting idea:

1. Find the error details. If error reporting is enabled, check the Show Problem Details box in the pop-up. Even with error reporting disabled, you might sometimes get error details. These two sources might provide different or additional information; it's advisable to check both.

2. Analyze the error details. Look for two key points: the fault module and the error code. The fault module is on the Fault Module line.

   • If the fault module points to a component of another software, try uninstalling that software.
   • If it points to a VEGAS component, try reinstalling VEGAS or switching versions.
   • If it points to a system component, it's less certain.

   The error code is the 0x followed by an 8-digit hexadecimal number. For example:

   • 0xC06D007F: Consider video plugin issues. Move OFX plugins out of the OFX folder.
   • 0xE0434352: Consider .NET component issues. Try repairing .NET Framework, or extension loading issues. Move extensions out of the extensions folder.

   Other clues: If the error content explicitly mentions a specific plugin or the keyword OFX, also consider video plugin issues.

   If none of the above works, you'll have to search online for the error code for various solutions. Some issues might even require a system reinstall to resolve.

IV. VEGAS Software Operation Q&A

Q: How to localize the VEGAS software interface (Chinese for example)?

A: The VEGAS program internally includes 9 languages: English, German, French, Portuguese, Spanish, Polish, Chinese, Japanese, Korean. However, the installer provided on the official website is the International Language version, containing only the first 5 languages listed, excluding Chinese. There are three localization paths:

1. Use a Chinese installer. Before purchasing, check the language support list to see if Chinese is included. For example, the version on the official website currently does not include Chinese, while versions provided by the Chinese agent and the Steam edition include Chinese. Otherwise, you must try the latter two methods.

2. Use a localization pack created by other users.

3. Modify the registry. Modifying the registry can activate the Chinese language built into VEGAS, but compared to the first two methods, this built-in Chinese might be incomplete or inaccurate.

Manual Registry Modification Steps:

With VEGAS already installed, press Win + R, type regedit to open Registry Editor. VEGAS language settings are in the ULangID value of the following registry keys:

• Boris VEGAS Pro 2026+:

HKEY_CURRENT_USER\Software\VEGAS Creative Software\VEGAS Pro\2026.0\Lang
HKEY_LOCAL_MACHINE\SOFTWARE\VEGAS Creative Software\VEGAS Creative Software Video Plug-In Pack\1.0\Lang
HKEY_LOCAL_MACHINE\SOFTWARE\VEGAS Creative Software\VEGAS Creative Software OFX GPU Video Plug-in Pack\1.0\Lang
HKEY_LOCAL_MACHINE\SOFTWARE\VEGAS Creative Software\Error Reporting Client\1.0\Lang

• Magix VEGAS Pro 20 ~ 23:

HKEY_LOCAL_MACHINE\SOFTWARE\VEGAS Creative Software\VEGAS Pro\23.0\Lang
HKEY_LOCAL_MACHINE\SOFTWARE\VEGAS Creative Software\VEGAS Creative Software Video Plug-In Pack\1.0\Lang
HKEY_LOCAL_MACHINE\SOFTWARE\VEGAS Creative Software\VEGAS Creative Software OFX GPU Video Plug-in Pack\1.0\Lang
HKEY_LOCAL_MACHINE\SOFTWARE\VEGAS Creative Software\Error Reporting Client\1.0\Lang

• Magix VEGAS Pro 19 and below:

HKEY_LOCAL_MACHINE\SOFTWARE\Sony Creative Software\VEGAS Pro\19.0\Lang
HKEY_LOCAL_MACHINE\SOFTWARE\Sony Creative Software\Sony Vegas Video Plug-In Pack\1.0\Lang
HKEY_LOCAL_MACHINE\SOFTWARE\Sony Creative Software\Sony Vegas OFX GPU Video Plug-in Pack\1.0\Lang
HKEY_LOCAL_MACHINE\SOFTWARE\Sony Creative Software\Error Reporting Client\1.0\Lang

Here, 2026.0 、23.0 and 19.0 represent the current VEGAS major version. The first line is the main interface language setting, but it's recommended to change all four.

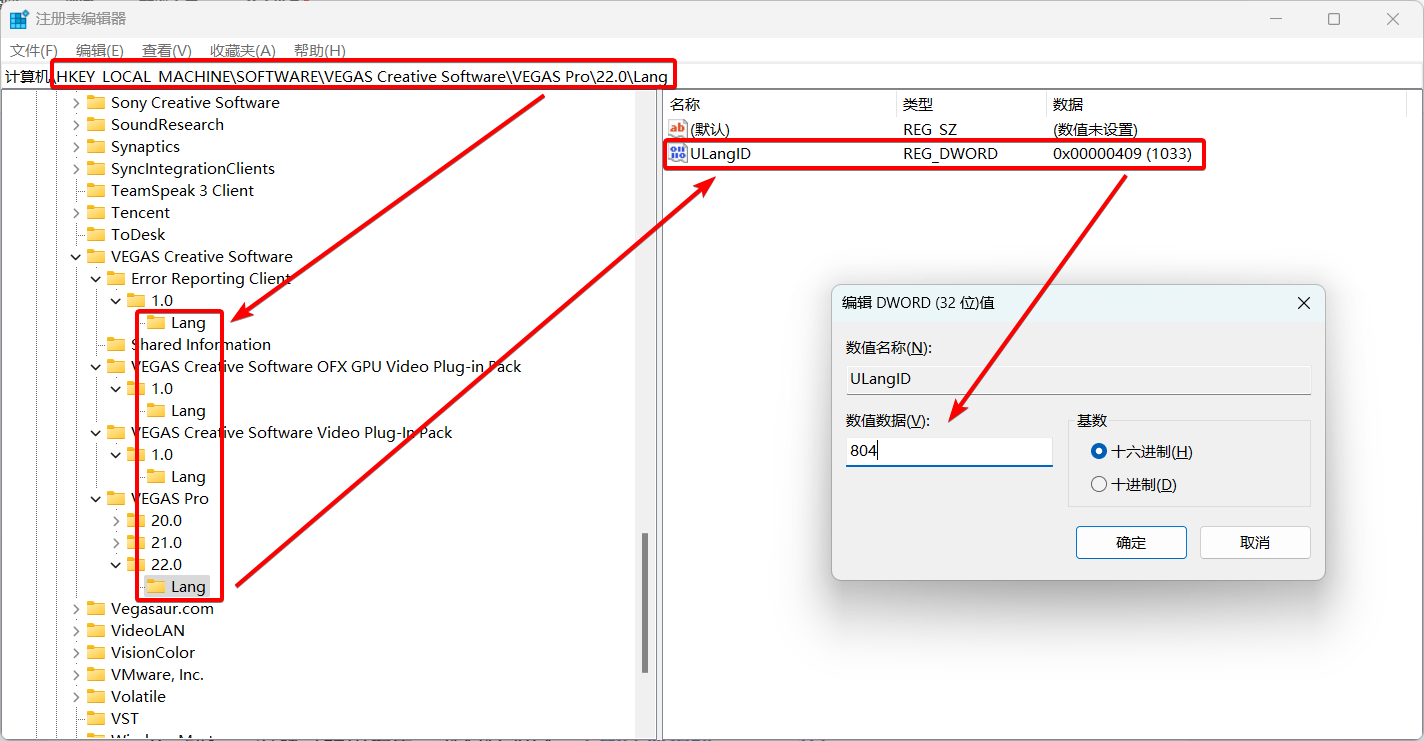

Language Registry

If you installed the English version, the default value for ULangID is likely the hexadecimal value 409 (decimal 1033). Change it to 804 (decimal 2052) for Chinese.

For other language IDs, see Microsoft's documentation: https://learn.microsoft.com/openspecs/windows_protocols/ms-lcid

For newer MAGIX VEGAS Pro versions, if after changing the registry, VEGAS fails to start with Error code: -1, navigate to the language folder in VEGAS's installation directory (default: C:\Program Files\VEGAS\VEGAS Pro 23.0\language\, where 23.0 is the version). Rename any local_xx_XX.cfg file (e.g., local_en_US.cfg for US English) to local_zh_CN.cfg.

Another useful tool: Vegas Language Changer: https://github.com/IZH318/Vegas-Language-Changer

After successfully starting VEGAS, if the names of built-in video FX are still in English, you can try clearing the plugin cache.

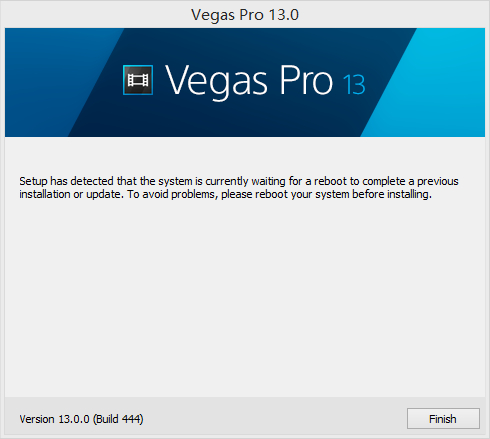

Q: Error during installation: PC needs to restart to continue installation?
Setup has detected that the system is currently waiting for a reboot to complete a previous installation or update. To avoid problems, please reboot your system before installing.

Installation Reboot Issue

A: First, try restarting your PC. If that doesn't work, you need to modify the registry. Open Registry Editor, navigate to HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\Session Manager, delete the value PendingFileRenameOperations, then restart your PC.

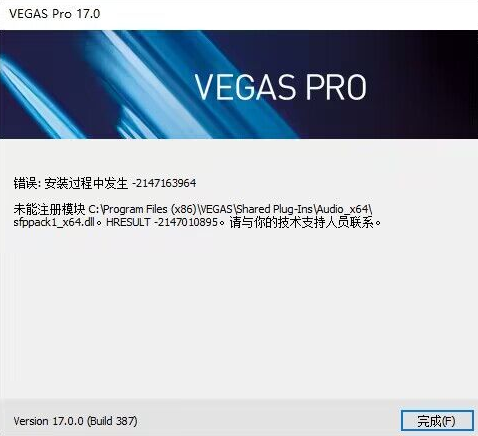

Q: Error: An error occurred during the installation -2147163964. Unable to register module xxxxx.dll.

Installation DLL Registration Issue

A: Restarting your PC and reinstalling usually fixes this. If it persists, try installing a different version.

Q: VEGAS won't start no matter what, not even showing the loading window?

A: This is an old issue: VEGAS processes are stuck in the background. Open Task Manager, find and end all VEGAS-related processes, then try running VEGAS again.

Q: VEGAS crashes/freezes at the "Initializing GPU-accelerated video processing..." step during startup?

A: First, try reinstalling your graphics card drivers. If that doesn't work, try this registry fix. Open Registry Editor, find the value:IntelOpenCL64.dll under HKEY_LOCAL_MACHINE\SOFTWARE\Khronos\OpenCL\Vendors and the value IntelOpenCL32.dll under HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Khronos\OpenCL\Vendors. Change the data for both values from 0 to 1, then restart VEGAS.

Q: VEGAS crashes/freezes (Error code 0xC06D007F) at the "Video plugin factory..." step during startup?

A: This step loads video plugins. It's often an issue with OFX video plugin scanning. Go to the OFX path: C:\Program Files\Common Files\OFX\Plugins\, move out potentially problematic plugins from this folder, then try starting VEGAS. Once it starts normally, you can try moving the files back or reinstalling the plugin. If you have specific error details, try to find keywords related to the plugin name.
(Prioritize checking Red Giant Universe plugins, as they cause startup crashes for many users.)

Q: VEGAS hangs/crashes/freezes at the "Scanning VST plug-ins..." step during startup?

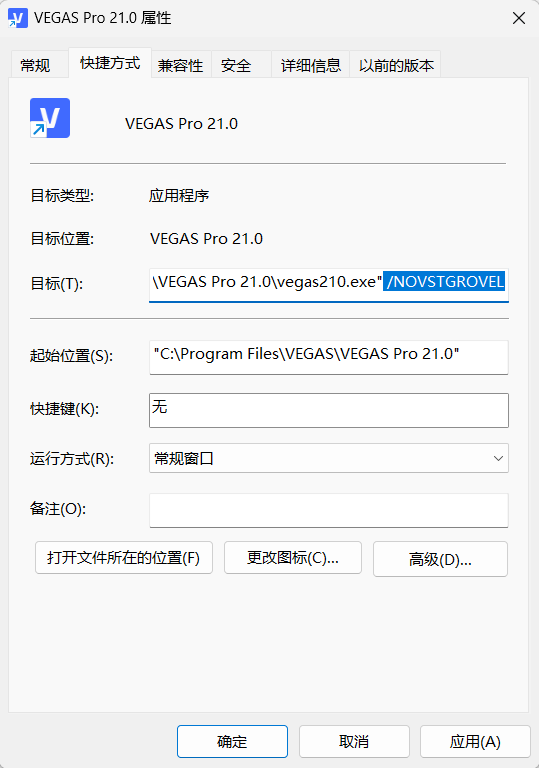

A: Try disabling VST scanning on startup. Right-click the VEGAS shortcut -> Properties. In the Target field, add /NOVSTGROVEL at the end (note the space before the slash). Then run VEGAS using this shortcut. Once it starts normally, you can move problematic plugins from the VST paths, store them separately, etc.

NOVSTGROVEL

Q: VEGAS hangs/crashes/freezes at the "Initializing DirectX plug-ins..." step during startup?

A: Similarly, try disabling DirectX plugin scanning on startup using the command /NODXGROVEL.

Q: VEGAS crashes/freezes (Error code 0xE0434352) at the "Initializing UI..." step during startup, or immediately after the main window appears?

A: Possibly an extension issue. Try deleting files from C:\ProgramData\VEGAS Pro\Application Extensions\ and other extension folders. You can delete them all or try to isolate which extension is problematic.

Q: VEGAS startup error: Unable to initialize scripting host / other .NET Framework common errors (e.g., 0xE0434352)?

A: VEGAS scripts rely on .NET Framework. Try running the .NET Framework Repair Tool: https://support.microsoft.com/topic/942a01e3-5b8b-7abb-c166-c34a2f4b612a

Q: VEGAS crashes/freezes (Error code 0xC0000005, fault module C:\WINDOWS\SYSTEM32\ntdll.dll) at the "Creating windows..." step during startup?

A: Go to Control Panel -> Programs -> Programs and Features and check if MSVC 1450 runtimes are installed, i.e., the 14.50 version of Microsoft Visual C++ 2015-2022 Redistributable for both x86 and x64. Microsoft distributed a version of these runtimes that causes VEGAS to crash. This version is automatically installed with Visual Studio 2026 and may be installed for other reasons. This is a Microsoft issue, awaiting a complete fix from them. Some affected users found that just uninstalling the runtimes may not work. Here's a temporary workaround (if you don't want to delve into DLLs, skip to the last step and use the x64 vcomp140.dll I provided):

1. Go to the Visual Studio download page: https://visualstudio.microsoft.com/downloads/, find and download the Visual Studio 2022 Build Tools (filename vs_BuildTools.exe).

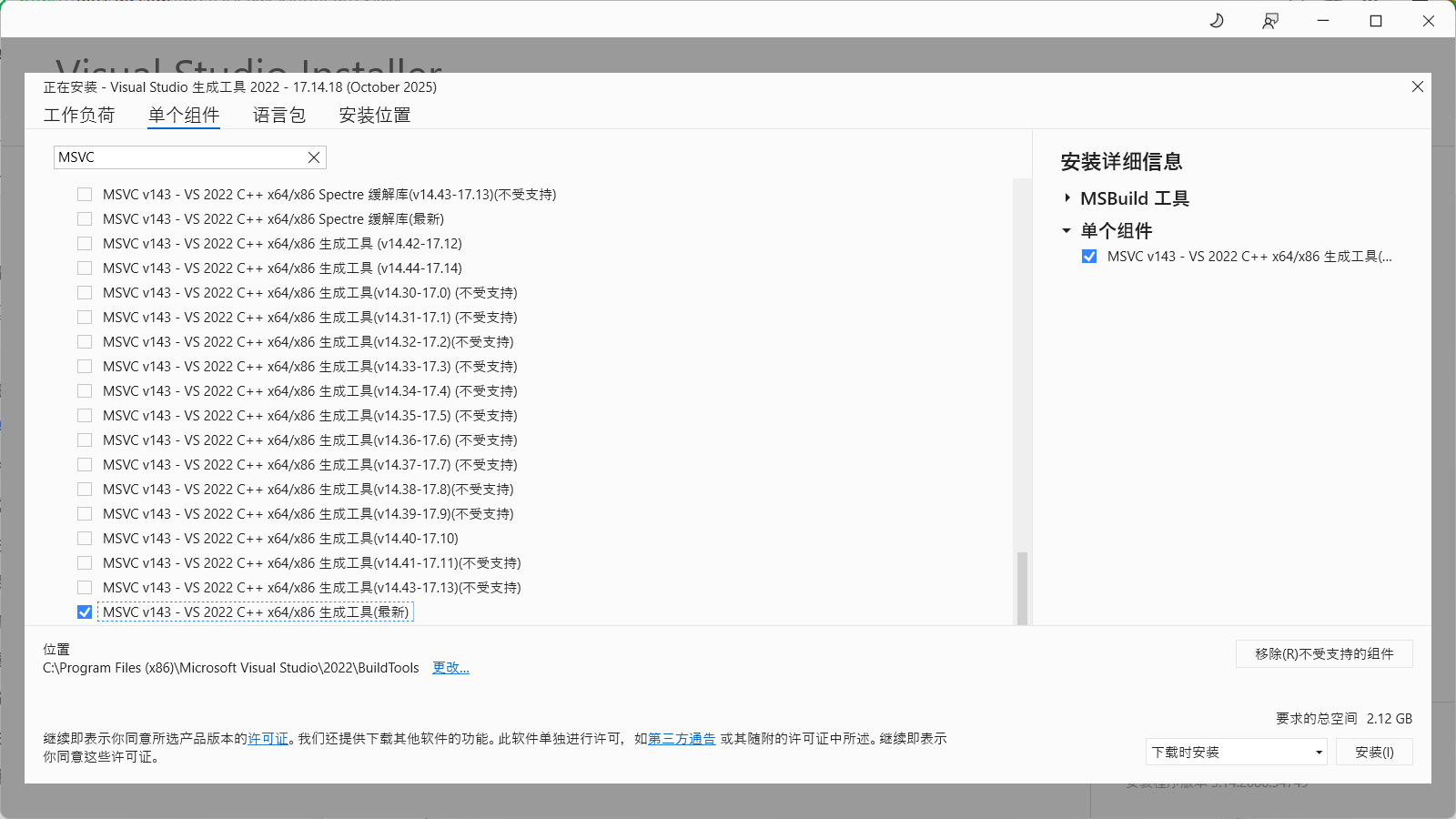

2. During installation, when prompted for additional components, go to Individual components, search for MSVC, check MSVC v143 - VS 2022 C++ x64/x86 build tools (latest), and continue installation.

MSVC 143 Install

3. After installation, go to the MSVC installation path: C:\Program Files\Microsoft Visual Studio\2022\Community\VC\Redist\MSVC\. There will be folders like v143 and 14.44.35112 (depending on the version you installed). The one resembling 14.44.35112 is the target.

4. Navigate to 14.44.35112\onecore\x64\Microsoft.VC143.OpenMP, find vcomp140.dll, copy it, and paste it into your VEGAS installation directory. Restart VEGAS.

Download link for x64 vcomp140.dll: vcomp140.dll
If you are using ARM Windows, choose the ARM folder, not x64. If you don't know what ARM is, you are likely an x64 user; use the x64 version.
Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/crashing-trying-to-launch-22-and-23-windows-11--149890/#ca943290

Q: After opening VEGAS, there's noise/no audio/...?

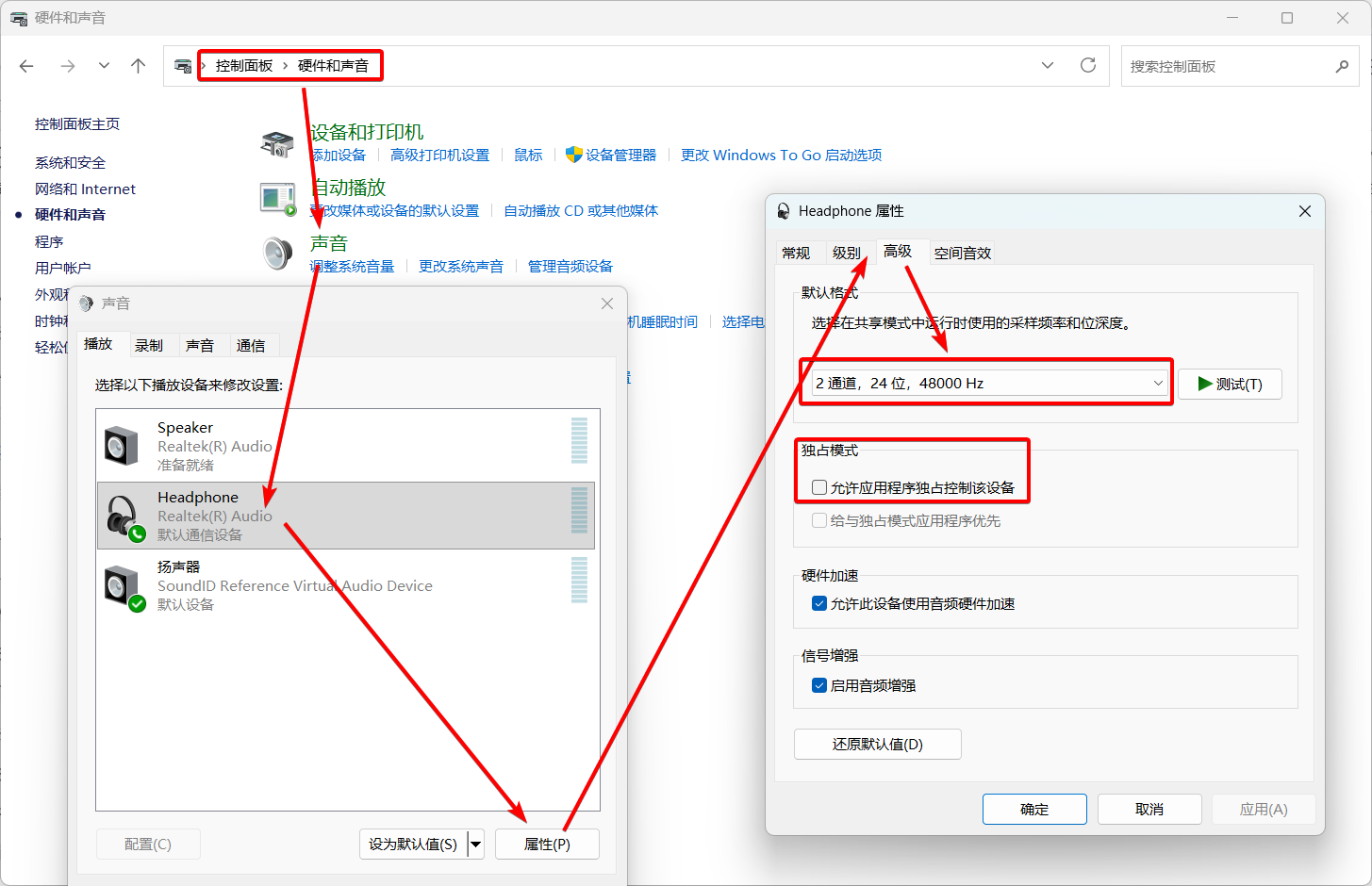

A: Go to Control Panel -> Hardware and Sound -> Sound, open Properties for your current playback device. On the Advanced tab, under Exclusive Mode, uncheck Allow applications to take exclusive control of this device, OR change the Default Format to 2 channel, 24 bit, 44100 Hz. If that doesn't work, try reinstalling your sound card drivers.

Audio Device

Q: A specific project file crashes/errors on opening?

A: Try renaming any media file used in the project so the project can't find it. When reopening, ignore the "media offline" prompts. After successfully opening, rename the file back or replace it.

Q: Opening multiple VEGAS instances causes crashes?

A: This can happen in all VEGAS versions due to a specific window layout. It's more likely when the Preview window is undocked (floating). A temporary fix: Before opening a new VEGAS instance, close or dock the Preview window of the old instance to avoid potential crashes.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/problem-to-open-more-instances-of-vegas-pro-22--148817/

Q: After VEGAS starts, there's a WebView error (msedgewebview2.exe, or WebView2 initialization failed, etc.)?

A: The MAGIX VEGAS Hub feature uses Microsoft Edge WebView. If you don't need the Hub, simply close its window via the menu View -> Window. You can also try deleting the WebView2 folder in the VEGAS cache directory: %localappdata%\VEGAS Pro\23.0\WebView2 (where 23.0 is your VEGAS version).

Q: [VP19] After working for a while, VEGAS window suddenly gets graphical corruption, UI glitches, becomes laggy, unable to continue, forcing a restart?

A: This is a VP19-specific issue in older builds (e.g., 19 build 341). Update to 19 build 651 to resolve it.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/ui-issues-with-vegas-pro-19-0--131391/

Q: [VP19, VP20] VEGAS crashes immediately after the loading screen, with no error pop-up?

A: Check your VEGAS build number. Is it 19 build 648 or earlier, or 20 build 402 or earlier?

Versions in this range have a critical bug causing a direct crash after loading, and can only be opened by disconnecting from the internet or changing the system date.

The fix is to update VP19 to 19 build 651 or later, and VP20 to 20 build 403 or later. (Note: VP19 final is 19 build 651, VP20 final is 20 build 411.)

Q: [22 build 122 and above] VEGAS won't run, no loading screen?

A: A Windows update issue. Download and run vc_redist.x86.exe and vc_redist.x64.exe to repair C++ runtimes: https://learn.microsoft.com/cpp/windows/latest-supported-vc-redist

Feedback suggests updating other software (like OBS) might also be needed.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/vegas-pro-22-won-t-run-after-sept-2024-windows-update--147255/

Q: ^{French Version} The French version of VEGAS Pro crashes on startup?

A: This is an issue specific to the French version. The only solution is to uninstall and reinstall the English version. VEGAS officials intended to fix it but have no clear solution. Users who can reproduce this issue are encouraged to contact VEGAS officials.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/vegas-22-build-93-crash-at-start-when-he-say-window-creation--147150/#ca926950

V. File Import Related

General Troubleshooting for Files Not Importing/Importing with Glitches/Green Flashes:

1. Enable/Disable Legacy AVC and HEVC Decoding

• VP18 and above: Preferences -> File I/O, enable/disable Legacy AVC decoding and Legacy HEVC decoding.

• VP15-17: Access Internal Preferences, search for Reader, find:

  • Use So4 Audio Reader for Intermediate/HEVC
  • Enable So4 Compound Reader for AVC/M2TS
  • Enable Mx Compound Reader for HEVC/ProRes ^{VP17 only}

  TRUE = Use new decoder, FALSE = Use old decoder. Default is TRUE. Try changing these.

• VP14 and below use only the old decoder; cannot switch.

Since 21 build 300, the meanings of "legacy" and "new" decoders have swapped. The original "legacy AVC/HEVC decoders" are now the default new decoders. The original "new AVC decoder" became the "legacy AVC decoder", and the original "new HEVC decoder" became the "experimental HEVC decoder".

For decoding issues (e.g., media turns completely green or black, no video stream, or even audio decoding problems), try enabling or disabling these two legacy decoders.

If that doesn't work, try switching the Hardware decoder option below (may require disabling legacy decoding).

2. Disable Resample

File -> Properties, under Resample, select Disable resample.

Disabling resample addresses frame-related issues. If resample is enabled (e.g., 30fps footage in a 60fps project), VEGAS generates frame blending between original frames (visible as a crossfade between two frames when scrubbing frame by frame). This can cause frame generation errors, resulting in flickering (green/black flashes). It's generally recommended to disable it.

In VP13 and earlier, you cannot modify the project's resample setting directly in Project Properties. Instead, select an event on the timeline, Right-click -> Switches -> Disable resample.

3. Install Corresponding Codecs

For example, QuickTime formats require QuickTime 7.7.9 installed with the QuickTime plugin selected during installation.

The question of installing K-Lite Codec Pack is still debated. Some users on the official forum say it "might conflict with VEGAS's built-in codecs" and advise against it.

4. Re-encode Media Files

If the above methods don't solve import failure/decoding issues/severe lag after import, try re-encoding the file. Recommended settings: Video codec AVC, audio codec AAC, container mp4, constant frame rate. If only audio has issues, you can extract the audio as a wav file and import it back, grouping it (G) with the original video.

5. Reset Preferences

A common scenario: Imported audio is completely noisy. In this case, try Resetting Preferences.

File Import Q&A

Q: Can't drag and drop files from folders into VEGAS, only use the Open button?

A: If VEGAS is running with administrator privileges, drag-and-drop is disabled. The fix is to run VEGAS without administrator privileges.

Note: If you're using a portable version of VEGAS (marked Portable), it might require administrator privileges to start, preventing drag-and-drop. Some "solutions" involve disabling UAC via registry, which is not recommended. It's better to switch to a regular version, not the portable one.

Issues with Portable VEGAS: Requires administrator privileges; cannot run multiple instances; doesn't recognize system environment variables; some plugins (e.g., Voukoder) need manual connector placement. Avoid if possible.

Q: Error when trying to import: Warning: An error occurred opening one or more files. The files could not be opened. Ensure the files exist and that you have access permissions to the file/folder.

A: Check if the VEGAS installation path contains only [half-width English characters (including half-width spaces)]. If it contains any other characters like Chinese, uninstall and reinstall VEGAS to a path with only half-width English characters.

Q: Want to import mkv files, but can't.

A: In VP17 and above, you can Preferences -> File I/O, Enable MKV reader, restart VEGAS, and try again.

This feature has many bugs, so import might still fail. If so, pre-convert with other software.

Note: 21 build 187 and above support mkv import by default; no need to enable manually.

Also: About converting mkv files

A video file has two layers: the inner encoding stream and the outer container. Import failure can be due to either unsupported stream or container.

For a file with AVC (H.264) stream and mkv container, VEGAS cannot import it due to unsupported container, but the inner AVC stream is supported. When converting, you can change only the container, not the stream. Using FFmpeg, the command ffmpeg -i input.mkv -c:v copy output.mp4 does this. In GUI converters (such as HandBrake), this is often called Copy or Remux. It's fast and recommended.

For a file with VP9 stream and mkv container, both stream and container are unsupported (VEGAS doesn't support VP9). Even converting container to mp4 won't work. You must re-encode both stream and container. For example, mkv files downloaded from YouTube might have VP9 video. Use a tool like MediaInfo to check the codec.

Q: Video recorded by OBS imports into VEGAS with incorrect, very short length?

A: This happens when OBS uses fragmented MP4 for recording, which VEGAS can't decode properly. Change the output format in OBS settings. For existing footage, use the copy stream method, e.g., ffmpeg -i input.mp4 -c copy output.mp4.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/solved-3-hour-video-only-1ms-of-video--144992/

Q: Cannot import some mov files with certain codecs?

A: First, ensure you have QT Lite or QuickTime installed. QT Lite 4.1.0 is generally recommended. For VP17 and above, the new decoder supports ProRes mov files, but other QuickTime codecs are no longer supported by default. You need to Preferences -> Deprecated Features, Enable QuickTime plug-in to import other QuickTime mov files.

Note: If installing Apple's QuickTime 7.7.9, ensure QuickTime plug-in is selected during installation.

Since VP23, VEGAS has effectively dropped QuickTime compatibility and can no longer import or render QuickTime-encoded mov files. For compatibility, it's recommended to use mov files encoded with ProRes.

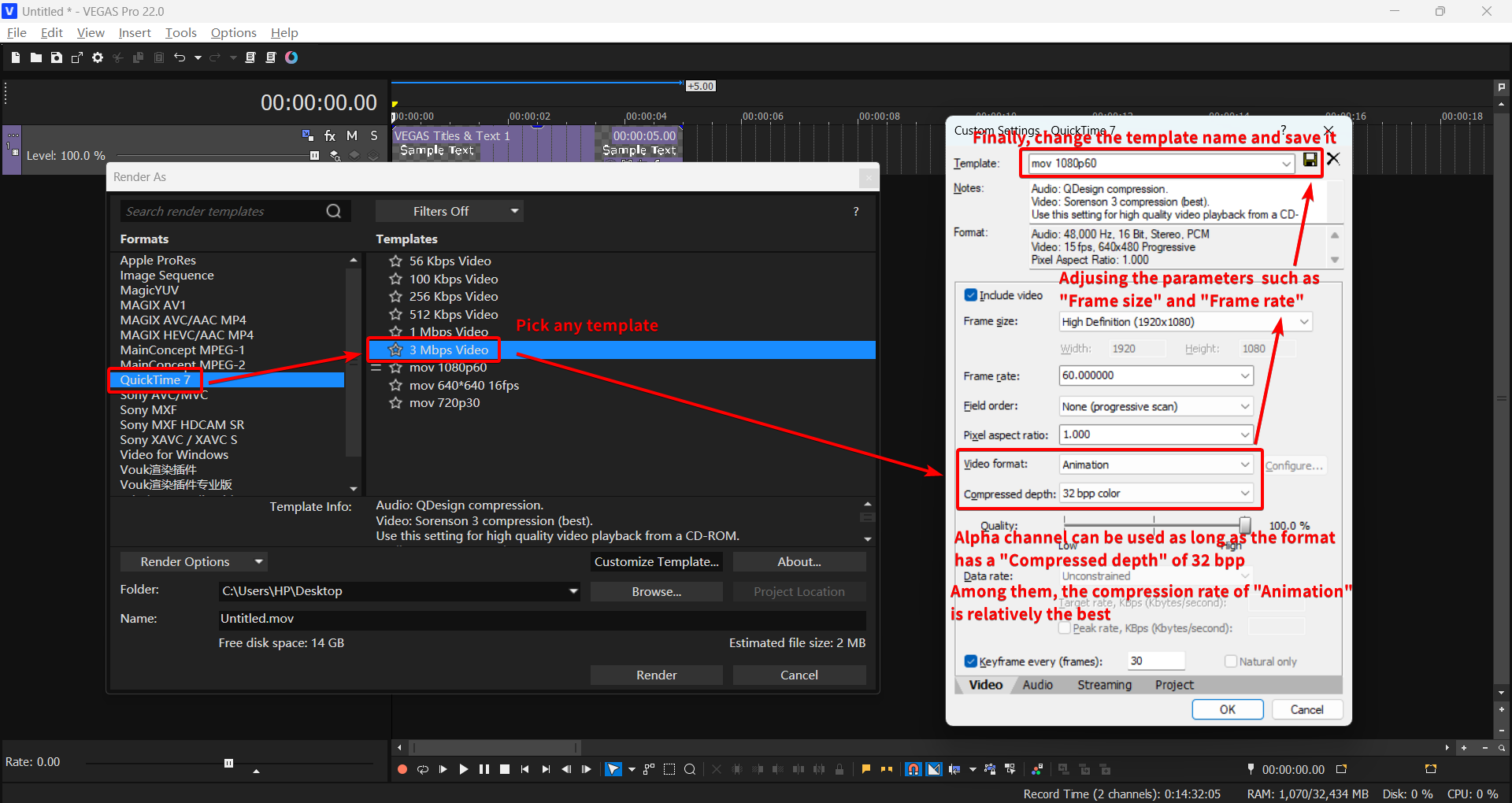

Q: After importing media files originally with alpha channel (mov or png), the alpha transparency is not displayed correctly in VEGAS?

A: In VEGAS, right-click the media file or event -> Properties, switch to the Media tab, find Alpha channel, change it to Straight (unmatted).
(Note: For Alpha channel, as long as you don't select Undefined or None, the alpha channel should display.)

You can also modify this property for multiple files in the Project Media window.

Q: Videos downloaded directly from web platforms like TikTok using tools like IDM (audio codec AAC LC SBR (HE-AAC)), when imported into VEGAS, have random audio glitches, noise, or are incorrectly recognized as mono?

A: This is entirely a VEGAS software bug, and as of the latest version (23 build 302), it's not fixed. Testing shows all previous methods fail. The only solution is to extract/re-encode the audio and import it separately. Videos downloaded via TikTok app are not affected.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/noise-at-the-end-of-a-clip--140457/#ca884682

Q: 4:3 videos/images import stretched horizontally to 16:9. How to fix?

A: This happens when 4:3 media is imported into a 16:9 project with certain auto-configuration. Fix: Right-click the media -> Properties -> Media tab, find Pixel aspect ratio, change from 1.3333 to 1, then click the save button next to the Stream section^{(Save settings to video profile for future auto-detection)}. This ensures future 4:3 imports aren't auto-stretched. This can also be done for multiple files in the Project Media window.

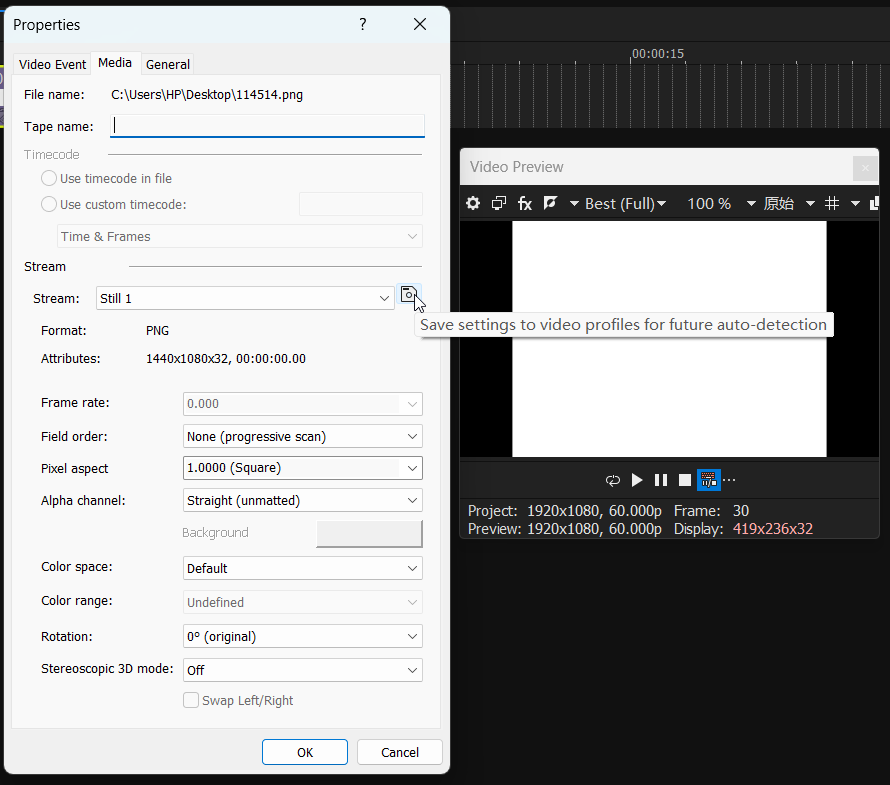

Video Profile Button

If you get "Unknown error occurred while trying to save video profile":

1. Press Win + R for Run.

2. Enter (where 23.0 is your VEGAS version; include English quotes "" around the path):

• notepad "C:\ProgramData\BorisFX\Vegas Pro 2026\Vegas profiles.ini" ²⁰²⁶⁺
• notepad "C:\ProgramData\VEGAS Pro\23.0\Vegas profiles.ini" ^VP17+
• notepad "C:\ProgramData\VEGAS\VEGAS Pro\16.0\Vegas profiles.ini" ^VP14+
• notepad "C:\ProgramData\Sony\Vegas Pro\13.0\Vegas profiles.ini" ^VP13-

3. Instead of clicking OK, press Ctrl + Shift + Enter to open the file with administrator privileges. Manually edit the default import profile for 4:3, changing all 1.3333333333 values to 1, then save.

• Note: Opening without administrator privileges will cause Notepad to prompt Save As instead of writing to the original file.

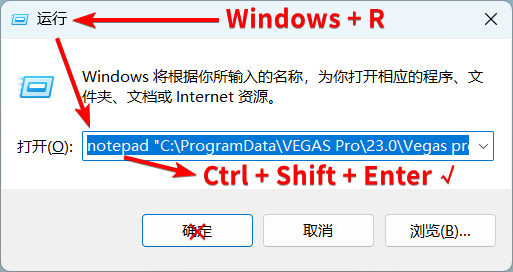

Video Profile Edit 1

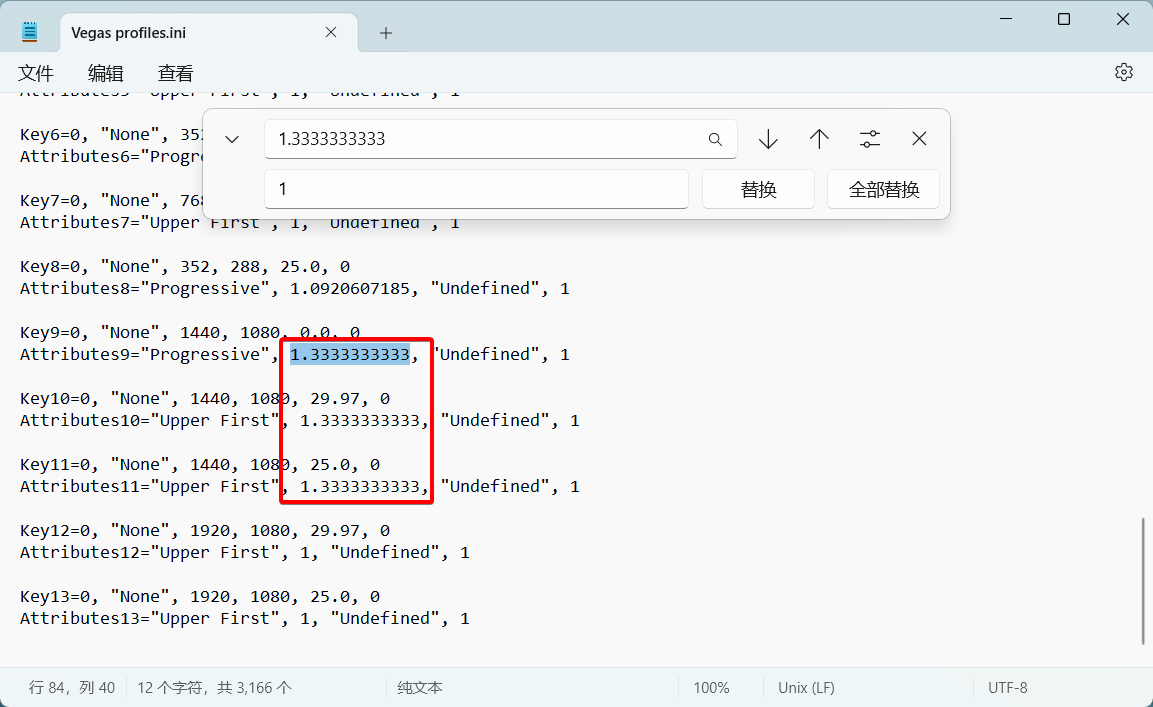

Video Profile Edit 2

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/4-3-video-clip-in-16-9-project--128760/#ca800773

VI. Software Operation and Display Q&A

Q: Video Preview window shows nothing?

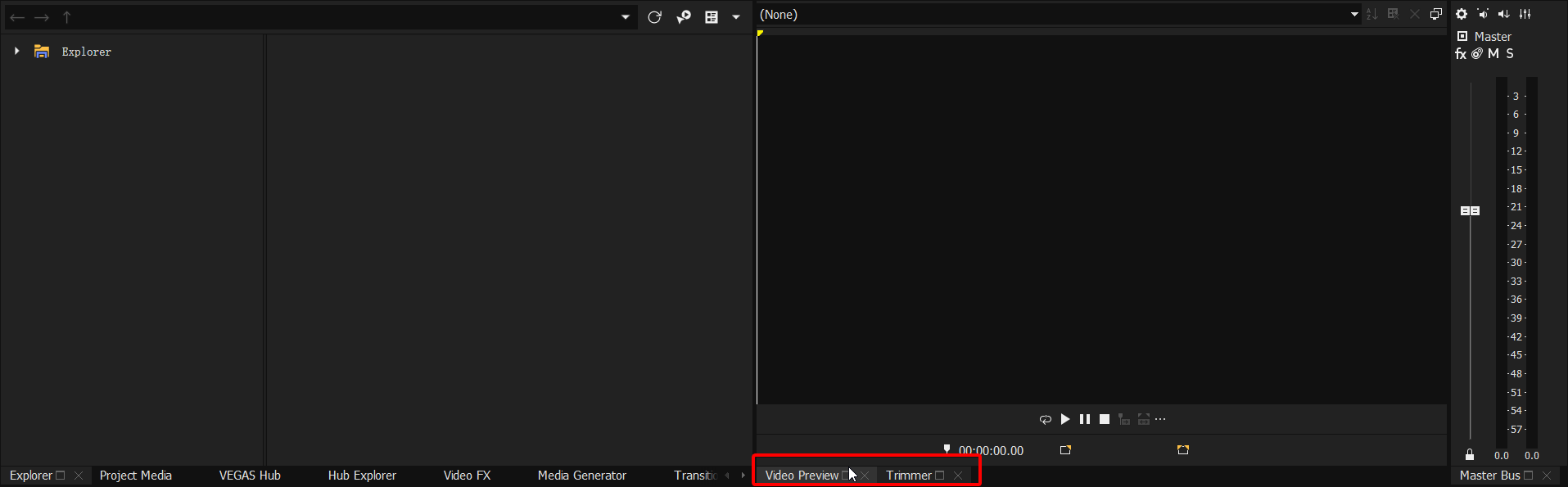

Trimmer or Preview?

A: Check if you've switched to the Trimmer window. If so, switch back to the Video Preview window. If you prefer the separated Trimmer and Preview window layout from older versions (VP14 and below), go to the menu View -> Window Layout and select Source Window Layout.

Q: Accidentally closed/dragged out the xxxx window. How to get it back/dock it?

A: Go to the menu View -> Window and enable the window you need. VEGAS window layout is highly customizable. Docked windows can be dragged out; undocked windows can be docked by dragging while holding Ctrl. Since VP23, windows can be docked above, below, left, or right of the timeline. Older versions only support docking above the timeline.

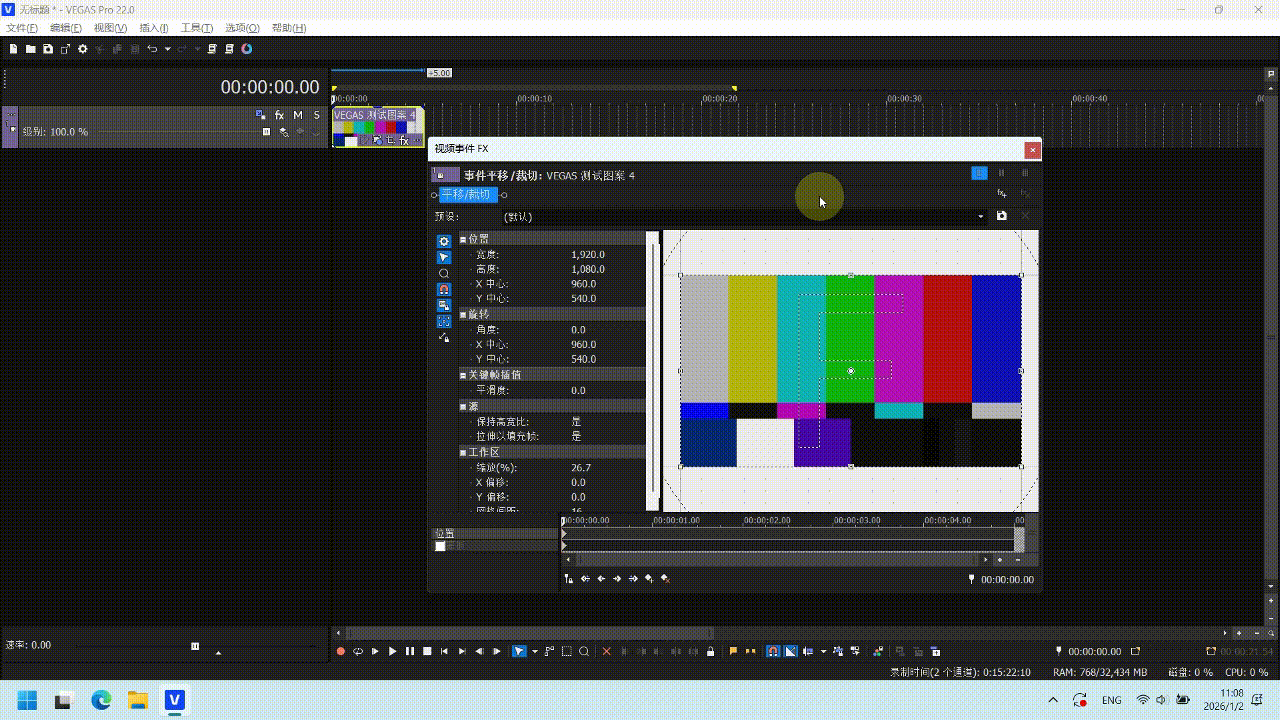

Q: Clicking Pan/Crop button/FX button/xxxx button doesn't open the window?/xxxx window disappeared?

A: Usually, the window was accidentally dragged below the Windows taskbar and can't be pulled up.

Easy fix: Click the corresponding button, then immediately press Alt + Space, choose Move, and drag the window up. Alternatively, hide the Windows taskbar temporarily, then drag. As a last resort, try View -> Restore Default Layout.

Move Window

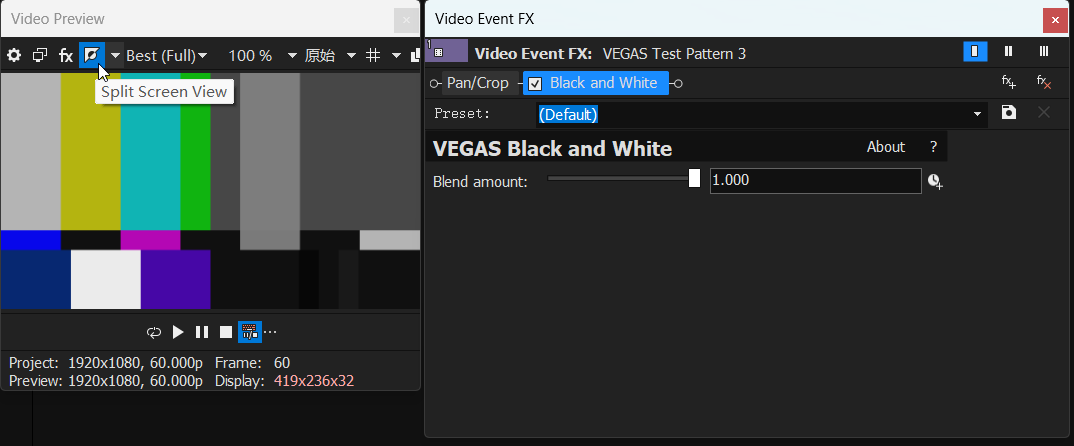

Q: Added an FX, but in the Preview window, the FX is not fully displayed, appearing split left/right?

Split Screen View

A: As shown, check if Split Screen View is enabled.

Q: Clicked something, and a single video track split into A/B tracks. How to revert?

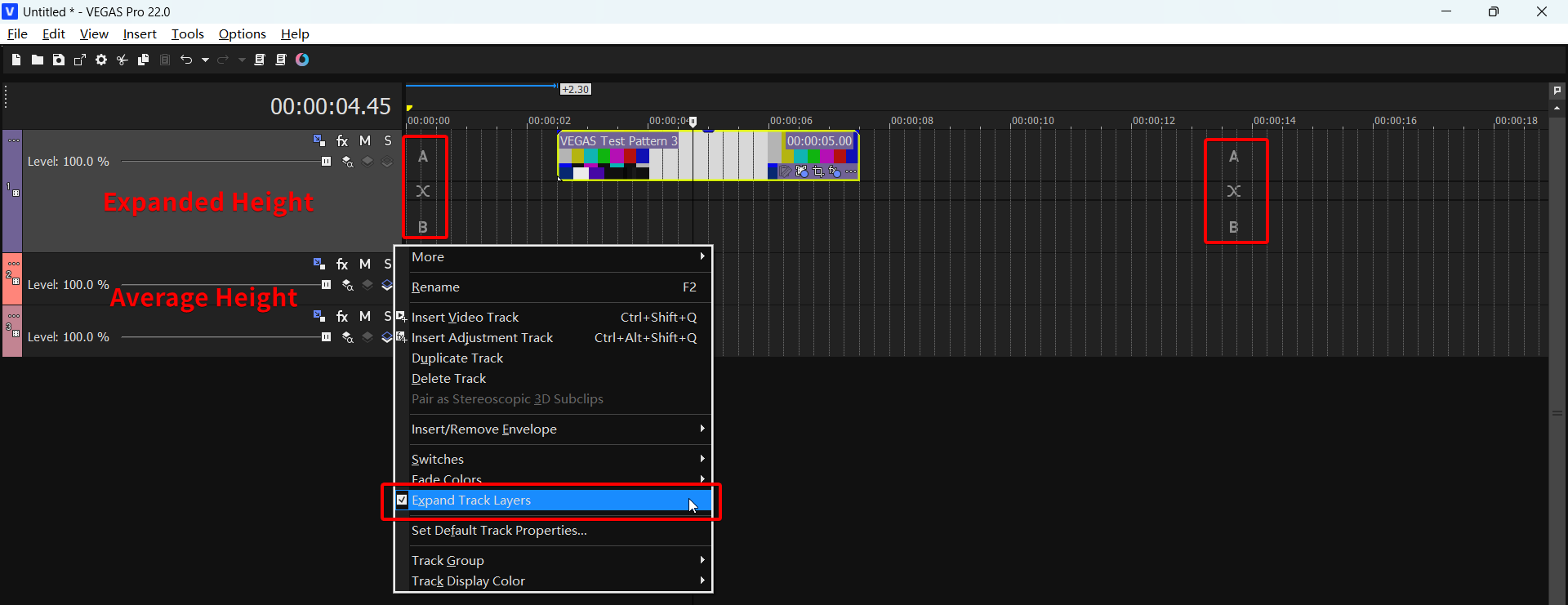

AB Track

A: Usually, this happens by double-clicking the edge of an event. Double-click the event edge again to fix it.

If that doesn't work, in the track header (left side with Level and buttons), Right-click -> Expand Track Layers, and uncheck this option.

To prevent accidental triggering in VP18+, go to Preferences -> General, scroll to the bottom, and disable Double-click event edge to toggle expanded edit mode.

Q: Pressing Undo (Ctrl + Z) while the Media Generator window is open causes the Media Generator effect to disappear from the preview?

A: When focus is on the Media Generator's edit window, pressing Undo (Ctrl + Z) may cause the Media Generator's Frame size and Duration parameters to change to abnormal values. Repeatedly pressing Ctrl + Z likely won't help in this case.

Both parameters are located in the top-left corner of the Media Generator window. You need to manually change the Media Generator's Frame size and Duration back to their original values. By default, Frame size matches the project dimensions (e.g., 1920*1080), and Duration defaults to 5 seconds (or 00:00:05.00 on the Time & Frames ruler).

• Another related minor bug: After modifying the Frame size and Duration of a Media Generator, if you immediately open a second Media Generator's edit window on the timeline, the second generator may inherit the Frame size and Duration parameters from the first one.

Q: Some FX windows (e.g., (legacy) Text, TV Simulator FX, other DXT plugins) display incompletely?

A:

1. Install the sserife.fon font.

   • Download link: https://github.com/taveevut/Windows-10-Fonts-Default/blob/master/sserife.fon

2. If installing the font doesn't help, go to Control Panel -> Region -> Administrative -> Change system locale. Ensure Beta: Use Unicode UTF-8 for worldwide language support is NOT checked, as shown below.

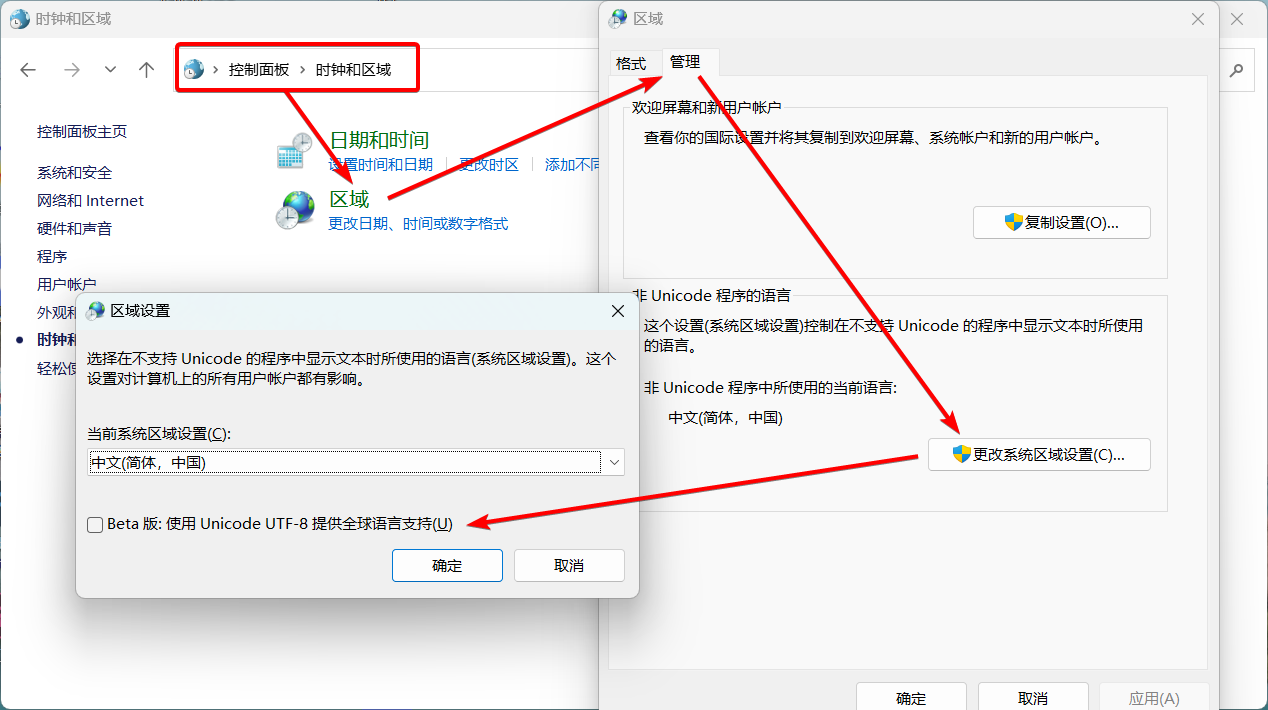

Windows Unicode Settings

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/credit-roll-window-not-displaying-in-full--138828/

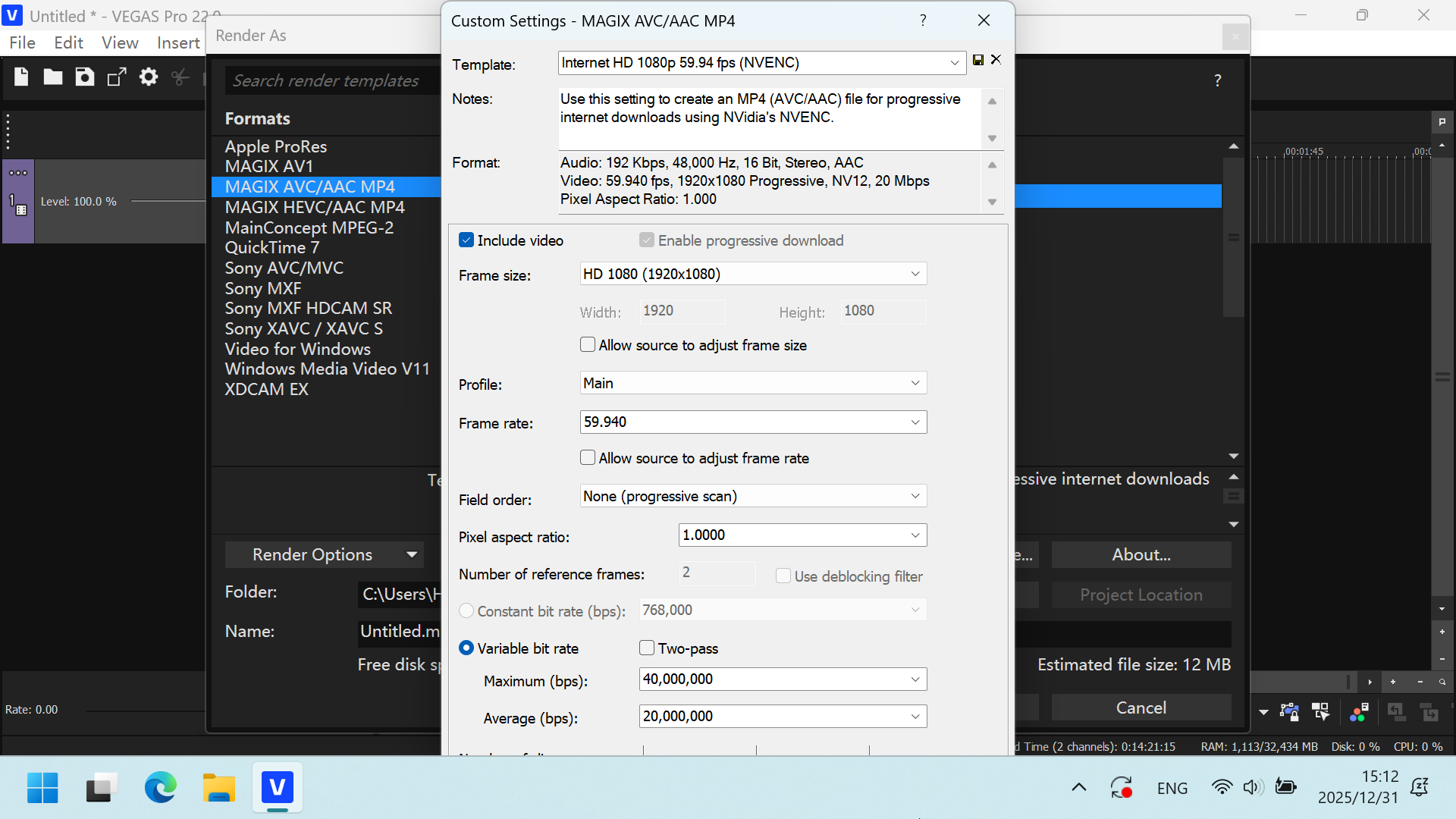

Q: Project Properties / Custom Render Template / Preferences windows are too large, can't display fully, can't click OK?

Window Too Large

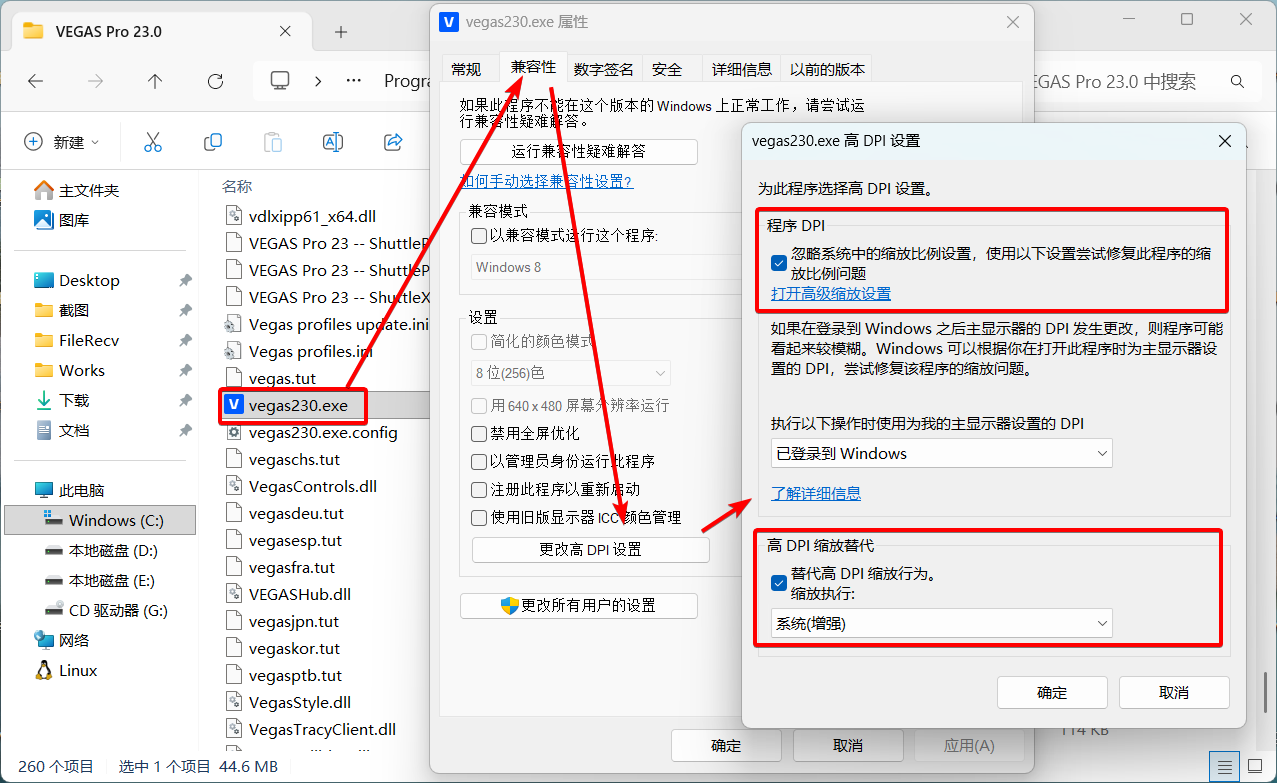

A: VEGAS window size scales with Windows display settings. High DPI scaling can make VEGAS windows very large, causing cut-off displays at extreme scales. To click "OK", you can press the Enter key. If you need the full window displayed, you must change the screen DPI scaling to 100% in Windows Settings before opening the window, then change it back. Alternatively, set VEGAS's DPI scaling individually to 100%: Right-click the VEGAS executable or shortcut -> Properties -> Compatibility -> Change high DPI settings. Set Scaling performed by: to Application.

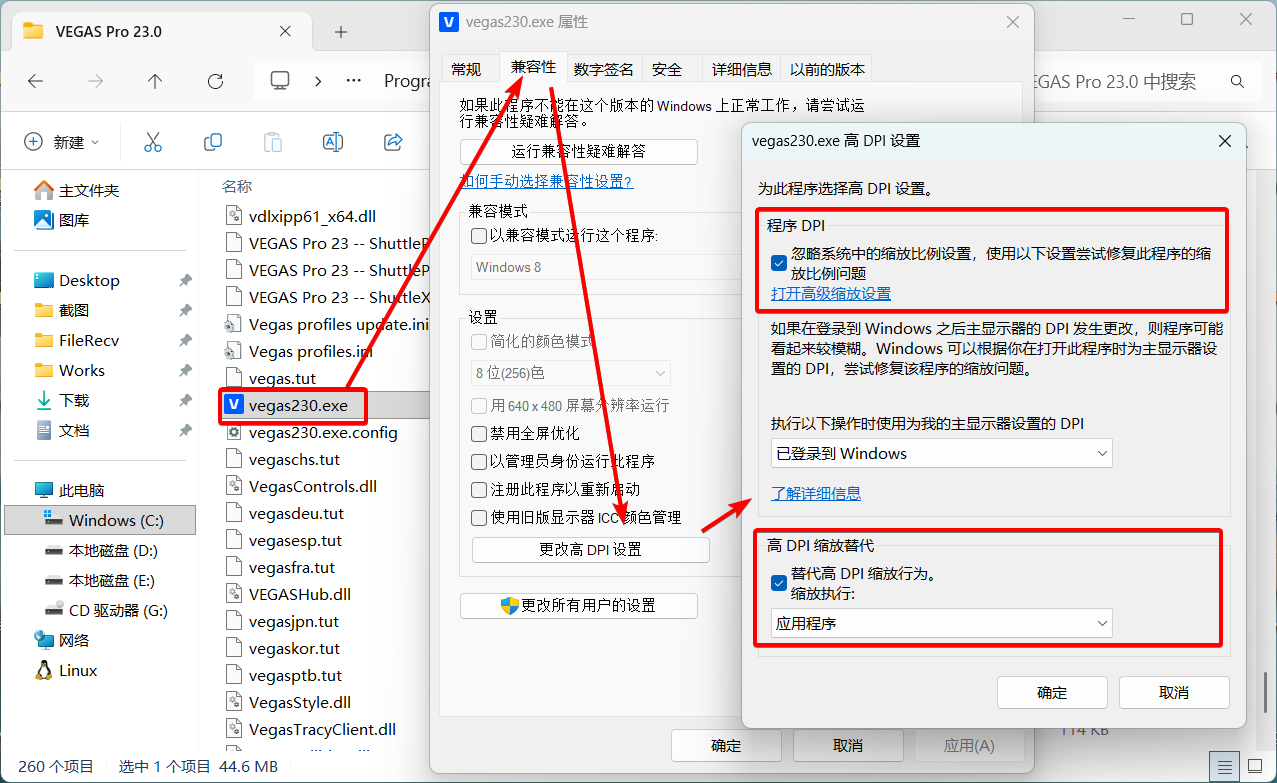

High DPI - Application

Q: After switching back to VEGAS from another software, it takes a long time to buffer before returning to normal?

A: Preferences -> General, uncheck Close media files when application is inactive. Note: When this option is disabled, VEGAS keeps media files in use, preventing you from modifying/deleting the original files outside VEGAS. (Doesn't affect replace/delete within VEGAS.)

Q: Trying to drag a video from the Project Media window to the timeline, but it accidentally starts "trimming"?

A: An old, annoying issue: Dragging on the video image triggers "trimming".

Standard fix: Press Ctrl + Z to undo, then drag by the filename below the video thumbnail, not on the image itself.

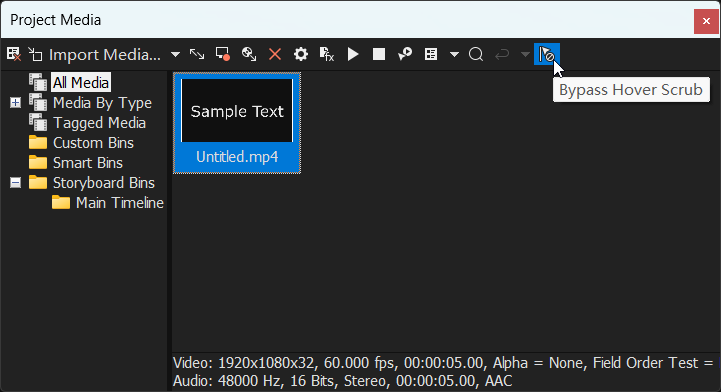

VP21 added a Bypass Hover Scrub button. Enabling it prevents misoperation, but you lose the ability to preview video by hovering (only see thumbnail).

Bypass Hover Scrub

Actually, this button was added in VP20, but in VP20 it had no effect.

Q: When playing in VEGAS, pressing the spacebar makes the cursor return to the start. I want space to pause at the current position.

A: In VEGAS, "Pause" means "stop playback, cursor stays", while "Stop" means "stop playback, cursor returns to start".

In VP22 and below, by default, Enter is "Pause", Space is "Stop". In 21 build 108 and earlier, you could swap them via Preferences -> General -> Use spacebar and F12 for play/pause instead of play/stop.

Since 21 build 187, this option moved to the transport bar below the Preview window, alongside play/pause/stop buttons. If not visible, expand the three dots on the right.

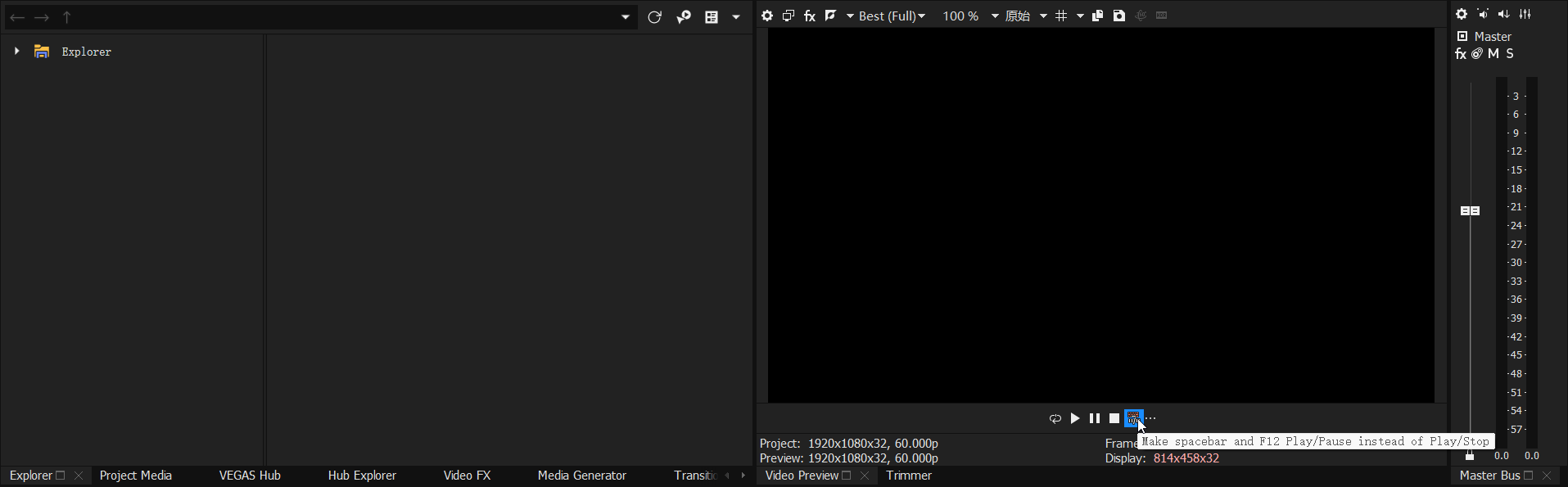

Cursor Transport

After the VP23 update, the default behavior changed: Enter is "Stop", Space is "Pause". The option became Use spacebar and F12 for play/stop instead of play/pause, available in both Preferences -> General and the transport bar.

Q: Crash when copying Pan/Crop keyframes?

A: A Windows 11 update issue. Upgrading to 22 build 250 fixes it.

• Temporary fix for older VEGAS: Right-click VEGAS executable/shortcut -> Properties -> Compatibility, under Compatibility mode select Windows 8.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/vegas-pro-22-consistent-crashing-when-copying-keyframes--148746/

Q: ^VP22+ Left-dragging on the timeline now selects events, can't select a time range anymore?

A: After VP22, left-drag on the timeline selects events, while right-drag selects a time range. If you're used to the old logic, you can check Preferences -> Editing -> Use right mouse button to switch to selection edit tool to swap left/right button functions, similar to Reaper's default logic.
If this happens in older versions, first confirm your edit tool is selected correctly (press D key twice).

This update also introduced a minor issue: the actual event selection area is slightly smaller than the mouse-drawn area due to a new offset value. Go to Internal Preferences, search for Default SelectionMode Offset, change it to 0.

VII. Preview Related

General Troubleshooting for Preview Flickering Green/Black, Footage Glitching, etc.

1. First try Disable GPU Acceleration, Disable Resample, Enable/Disable Legacy Decoders.

2. Switch the preview quality in the top-left of the Preview window (e.g., Best (Full)) to see if it normalizes.

3. Specific plugin bug: Try removing video FX that might cause the issue.

4. Re-encode all original media files and replace them.

5. Inexplicable preview flickering/glitching is frustrating. If the above methods fail, you might be out of luck.

Preview Q&A

Q: After adding FX / modifying subtitle text / editing FX, the Preview window doesn't update. Changes only appear after closing the FX window?

A: This issue appears with certain Nvidia driver versions. Here are solutions:

1. Disable GPU Acceleration. Simple and effective. (Using integrated GPU acceleration also works.)

2. To solve while keeping GPU acceleration enabled, modify OpenGL settings.

   Go to Internal Preferences, search for Enable OpenCL/GL Interop, set to FALSE.

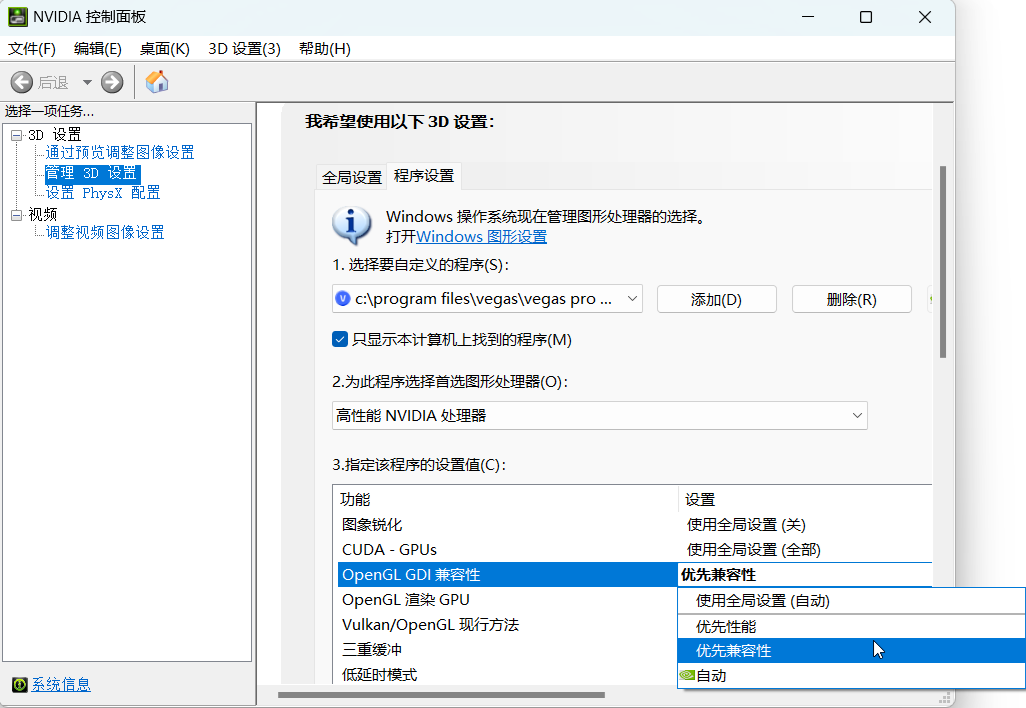

   Alternatively, change settings in the Nvidia Control Panel:

   Open NVIDIA Control Panel, click Manage 3D settings on the left, switch to the Program Settings tab on the right. Click Add, select the VEGAS executable, and change OpenGL GDI compatibility from Use global setting to Prefer compatibility. Restart VEGAS. (If you have multiple VEGAS versions, set each separately.)

NVIDIA OpenGL GDI Compatibility

3. Roll back Nvidia driver to 522.30 or earlier, or update to the latest. When reinstalling, choose "Custom" installation and check Perform a clean installation. This resets all driver settings to default, so not recommended.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/problems-with-nvidia-driver-526-98--138196/

VIII. Rendering Related

Recommended Render Plugin: Voukoder

When using VEGAS's built-in render templates, we often need to constantly adjust resolution, frame rate, bitrate, etc., to match the project properties and achieve desired quality. However, there's a render plugin that automatically matches resolution/frame rate to project properties and supports advanced CRF/CQP parameters for bitrate control, allowing rendering with less manual parameter tweaking. This plugin is Voukoder.

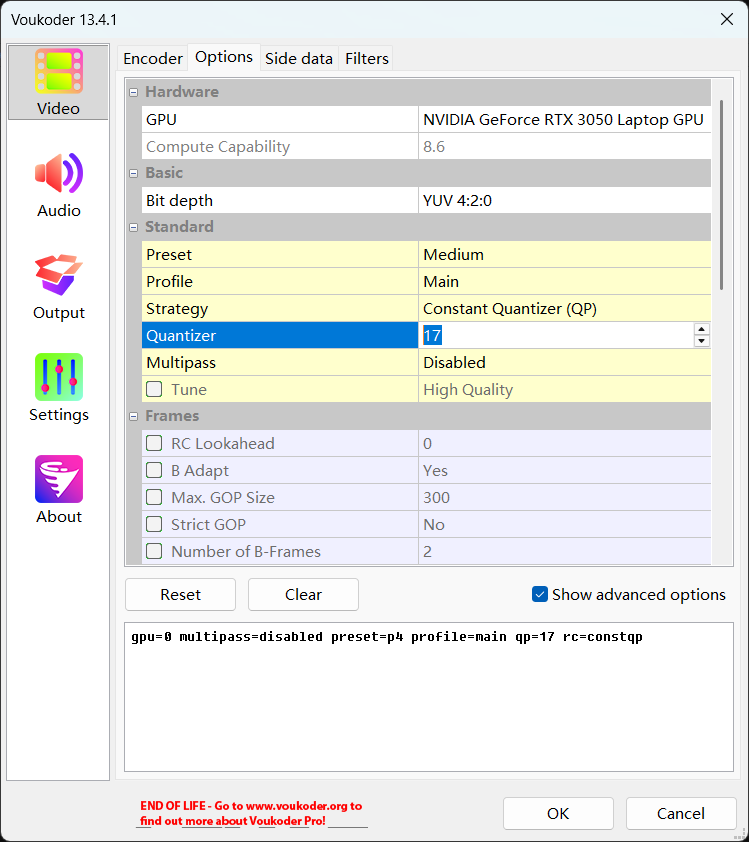

Voukoder Classic

Two versions: Voukoder Classic and Voukoder Pro.

• Voukoder Classic is free, supports VP12-VP22, but was removed by the original author Vouk.

  User backups on GitHub:

  • https://github.com/FORARTfe/voukoderFREE
  • https://github.com/FORARTfe/voukoder-connectorsFREE

  Requires installing both the Voukoder core (e.g., Voukoder 13.4.1) and the connector (e.g., connector-vegas22-1.0.0.msi).

• Voukoder Pro is currently paid. Official site: https://www.voukoder.org/.

  • Voukoder Pro 1 was once free, but Voukoder Pro 2 became paid, with each major version requiring a separate purchase.

Other similar plugins include DebugMode FrameServer and MagicYUV. I don't use them often; they might suit more advanced users.

General Troubleshooting for Render Crashes/Freezes/Errors

• Render Crash: VEGAS suddenly goes white and crashes with an error during rendering.

• Render Freeze: Progress bar stops moving, CPU/GPU usage in Task Manager is low, clicking "Cancel" doesn't work, forcing you to kill VEGAS via Task Manager.

• Render Error: Rendered video has flickering frames/green screens.

Before rendering, ensure:

• Project Properties and Render Template don't have problematic values. E.g., Field order is progressive, width/height divisible by 4 (some encoders use 4x4 blocks), frame rate is common (especially strange decimals, aside from standard 23.976, 29.97, 59.94).

• Render template matches Project Properties exactly. Mismatch can cause issues like Sapphire plugin position offset.

• When modifying bitrate in built-in templates, ensure Maximum bitrate is larger than Average, not equal.

1. If render crashes with an error pop-up, see Disable VEGAS Error Reporting Pop-up.

2. Disable GPU Acceleration.

3. Change encoder in render template.

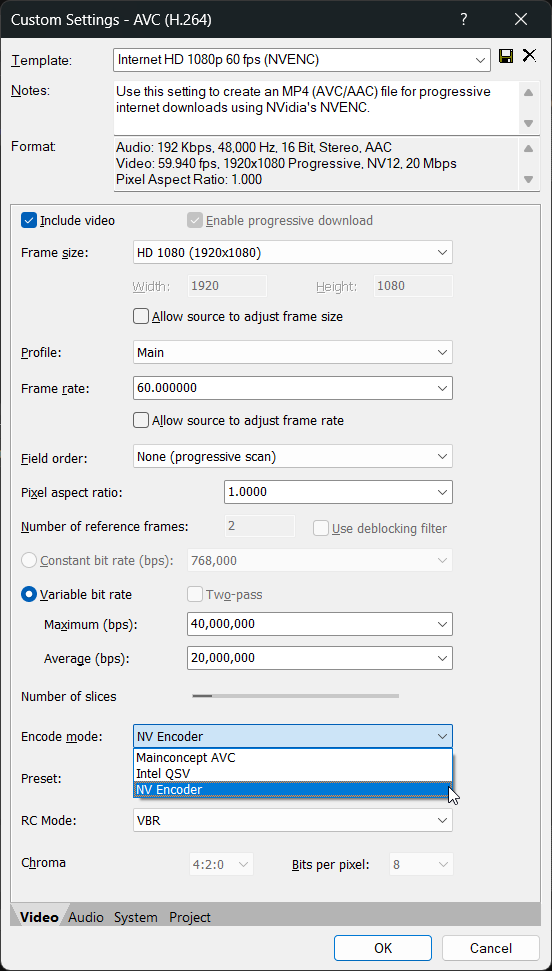

Render Encoder

Available encoders depend on your GPU.

4. Modify the area around the frame where it freezes: delete FX, trim events, etc.

5. Use a different render format (e.g., wmv).

• Note: Default wmv template is: resolution 1440*1080, Pixel aspect ratio 1.3333. Although the final aspect ratio is 16:9, rendering directly with these parameters can cause issues. Manually change to resolution 1920*1080, Pixel aspect ratio 1.

6. ^Recommended Render using Voukoder.

7. ^Recommended Nest and Render.

• Create a new project, drag the original .veg file directly into it. After proxy creation, render directly. Nested rendering is slower; low-spec PCs may struggle.

8. Segment Rendering.

• For freezes, split the project into small segments, render separately, then create a new project, combine all segments and render again.
• For random render errors (e.g., first render has issue in first half, second render has issue in second half), you can combine the good halves from both renders.

9. Render Image Sequence. Start rendering from where it froze. This at least preserves rendered files. Finally, import the image sequence back into VEGAS and render it as a video. After each sequence render, output to a new folder to avoid overwriting, as VEGAS always starts numbering from 000000.

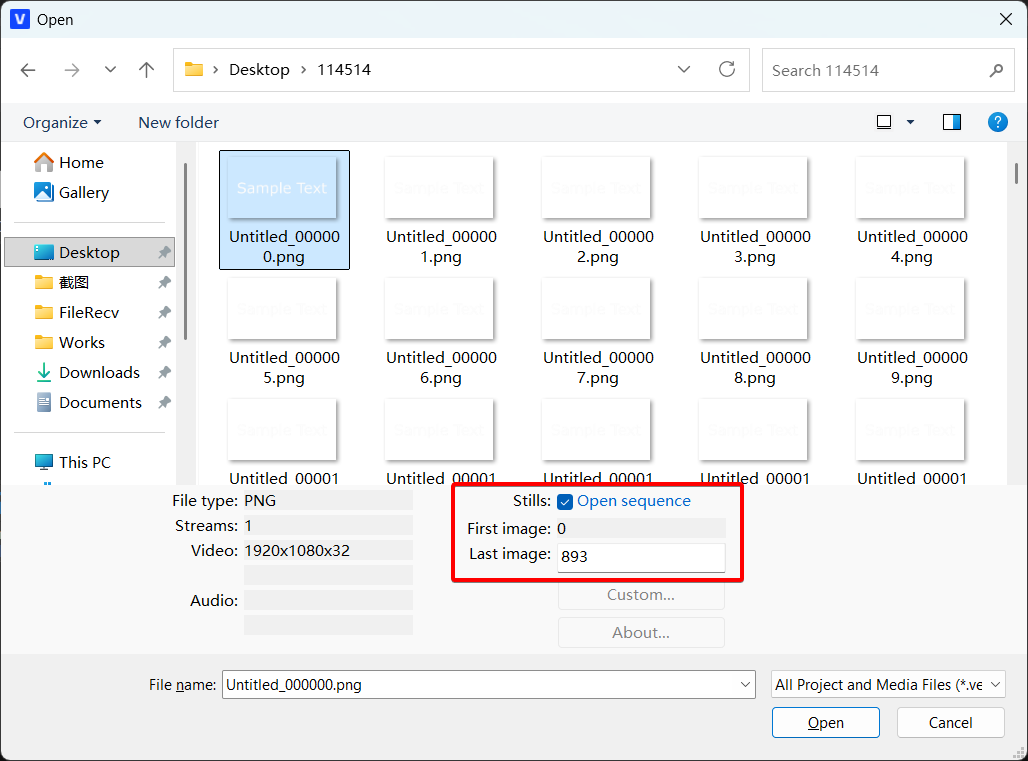

Import Image Sequence

Importing an image sequence. It behaves like a video file; you can set frame rate.

10. Use Voukoder, customize template, set output container to mkv, and render from where it froze.

• Unlike other formats, mkv files remain playable and importable after a render freeze/crash. Note: Lower VEGAS versions cannot import mkv directly.

11. Ask someone else to render.

• Use File -> Export -> .veg to collect project media into a new folder. Compress and send to another trusted VEGAS user.

Summary: For render issues, try methods 1, 2, 3 first. If they fail, prioritize methods 6 and 7. Other methods are references. Methods 8, 9, 10, 11 are last resorts.

Repairing Files from Failed Renders

As mentioned, only image sequences and mkv container preserve rendered progress after a failure. Other formats (mp4, mov, avi, wmv) leave a cache file, but it's not directly playable/importable; playback may show corruption. However, video repair software can sometimes fix these failed cache files using a reference video sample successfully rendered with the same template. I've tested Digital Video Repair (free) and Wondershare Repairit (paid, better results). You can try others.

Rendering Q&A

Q: Clicking Render As (called Render in VP23+) to open the template list causes error/crash?

A: If there's an error pop-up, first try Disabling Error Reporting.

If that fails, try temporarily moving all folders from the codec path ...<VEGAS install path>\FileIO Plug-Ins\, restart VEGAS, insert a text event, and see if clicking Render As still crashes. If not, gradually move codecs back, restarting VEGAS and testing Render As after each to identify the problematic codec. Once found, avoid using that codec by not placing its folder back. This may prevent VEGAS from importing/rendering certain formats. (Prioritize checking mxavcaacplug.)

Q: Immediate render error: An error occurred while creating media file xxx.mp4. The reason for the error could not be determined.

A: In Customize Render Template, uncheck Enable progressive download. Or try Voukoder.

Q: Immediate render error: An error occurred while creating media file xxx.mp4. Error 0x80660008 (Message missing)

A: If you are using NVIDIA NVENC encoder and your graphics driver version is > 590, then built-in render templates in VP22 and below cannot call NVENC. Current solutions:

• Choose templates with other encoders than NVENC.
• Downgrade NVIDIA driver to 581.57 or below.
• Upgrade VEGAS to VP23 or above.
• Use Voukoder's NVENC encoder without error.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/rendering-issues-after-gpu-replacement-nvenc--150382/

Q: Error when trying to render m2ts: The COM object could not be initialized.

A: Starting with Win11 24H2, Microsoft removed the AC-3 codec that VEGAS and other software depend on. On a fresh install of Win11 24H2 or later, this codec is missing, causing VEGAS to fail decoding AC-3 audio in m2ts files and fail rendering m2ts. Refer to this tutorial to add the AC-3 codec back, or upgrade to VP22 final (22 build 250) or above, which includes a new AC-3 codec.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/no-audio-and-no-rendering-possible-with-m2ts-files-in-win11-24h2--147963/

Q: Want to stop rendering midway but keep the partially rendered video file.

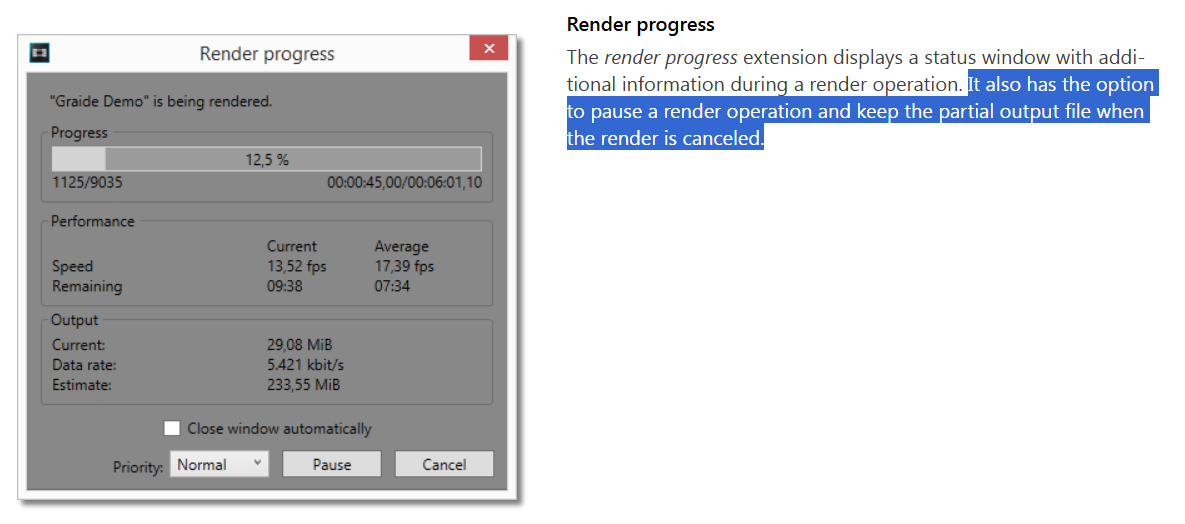

A: The SeMW extension render display window has this feature.

SeMW Render Prompt

SeMW Extension official site: https://www.semw-software.com/en/extensions/

Note: Testing shows this feature does not solve the "cannot cancel render" issue during a freeze; you must kill VEGAS via Task Manager in that case.

Q: How to render mov files with alpha channel?

A:

• QuickTime Plugin (VP22 and below. Good compression for static images, small file size.)

  1. Install QT Lite or QuickTime. QT Lite 4.1.0 is recommended. For newer VP, also Preferences -> Deprecated Features -> Enable QuickTime plug-in.

  2. In render template list, select QuickTime on the left. Choose any template on the right, click Customize Template, adjust parameters as shown:

Render Alpha QuickTime

3. Save template and render.

Due to poor compatibility, QuickTime format is listed under Deprecated Features. Testing shows importing many QuickTime mov files into VEGAS can cause issues (read failures, lag). Also, alpha channel isn't displayed by default on import; needs manual change. For compatibility, Apple ProRes is recommended.

Since VP23, VEGAS has effectively dropped QuickTime compatibility and can no longer import or render QuickTime-encoded mov files.

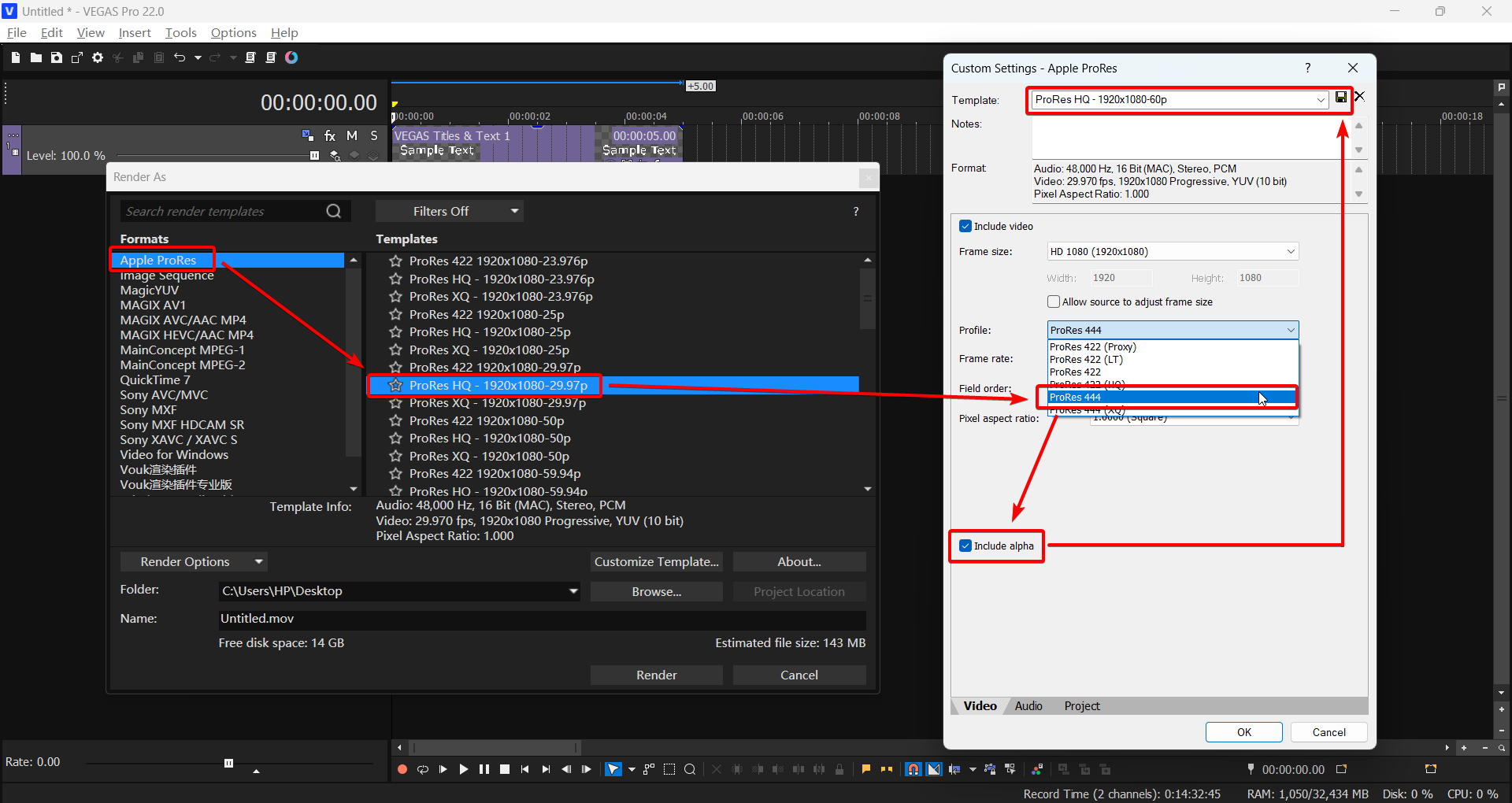

• Apple ProRes Template (VP18+. If template doesn't exist, this method is unavailable.)

  As shown:

Render Alpha ProRes

• Voukoder(VP18+, Voukoder Classic version 12.0+.)

  In Voukoder templates, find those marked 4:4:4 10 bit with alpha channel and render. Or customize: Output container QuickTime (.mov), Video encoder ProRes KS or QuickTime Animation.

Q: Preview or rendered file has color difference/inconsistency compared to the original media?

A1: In VP17 and below, color space settings in Project Properties and Render Template can cause color shifts.

Three solutions:

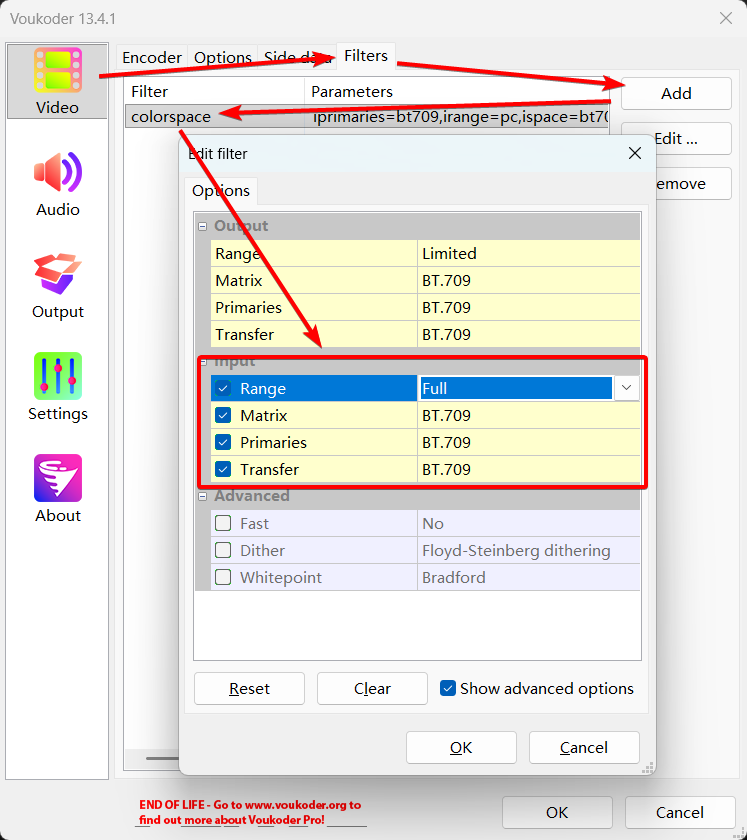

1. Use Voukoder, create a template with Filters to convert color space.

Voukoder Color Space

2. Upgrade to VP18+. When opening an old project in new VP, change Pixel format in File->Properties from Legacy 8-bit (video levels) to 8-bit (full range), and don't use render templates created in old VP.

3. Apply the Levels FX preset Studio RGB to Computer RGB to media files.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/why-magix-avc-mp4-encoder-changes-the-color-of-the-original-video--142942/

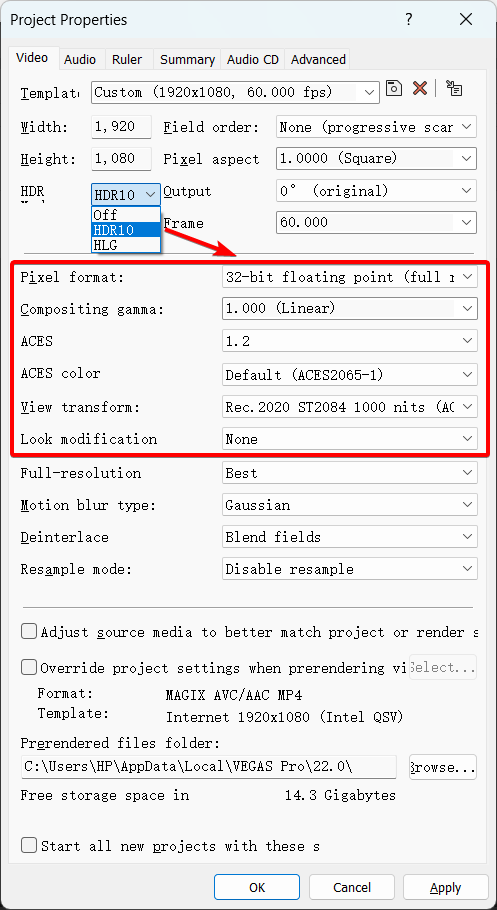

A2: If source is HDR footage, change the Project Properties Color space ^{Fig 1} to match the source ^{Fig 2}. This switches the entire project to 10-bit color depth, making rendering slower than 8-bit.

Project HDR Color Space

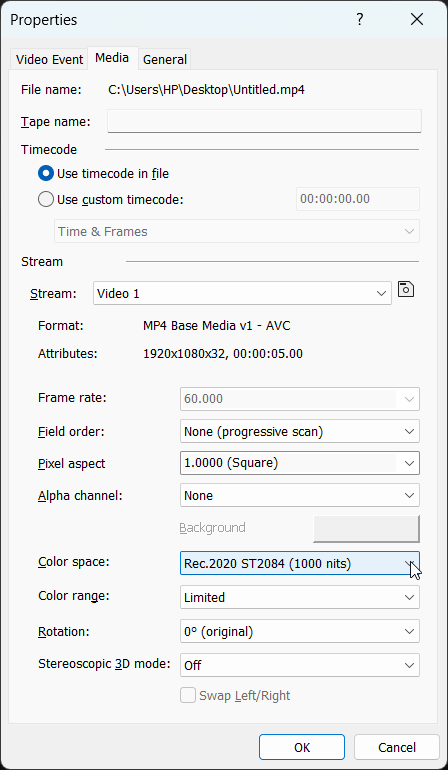

Footage HDR Color Space

Alternatively, keep project color space unchanged and apply a color space conversion LUT to the source footage. Use the built-in LUT Filter FX or the newer Color Grading feature. The key is finding a LUT that converts the source color space to Rec.709 standard. This loses HDR details, so if you don't plan to output HDR, avoid recording HDR footage initially.

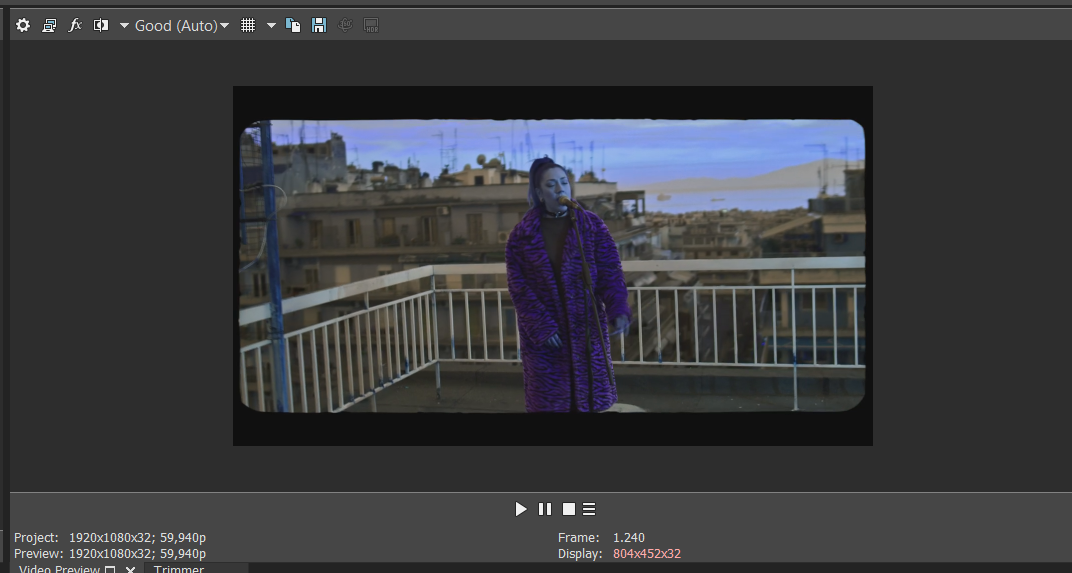

Q: Rendered video has color shifts (red becomes purple, blue becomes yellow, etc.)?

BGRA Color

A: AMD GPU driver issue. Try:

• Disable GPU Acceleration.
• Roll back AMD driver to 23.7.2 or earlier, or update to 23.11.1 or later.
• Upgrading to 21 build 187 or later fixes this.
• Before rendering, add the built-in Channel Blend FX to the Video Output Bus, select preset RGBA -> BGRA.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/problem-with-rendering--142292/

Q: [VP18 and below] Cannot render videos taller than 2304 (e.g., vertical 4K)?

A: In older versions, trying to set height above 2304 in a native template's custom dialog automatically reverts to 2304. The easiest solution is to use Voukoder after setting your desired project properties.

Here's a "bug exploit" method using native templates:

1. In Render As, choose a template allowing custom dimensions, like MAGIX AVC or MAGIX HEVC. On the right, pick a close template, click Customize Template.

2. Modify all parameters except height to your desired values, and change the template name at the top, but DO NOT click the save button yet.

3. Now, change the height to your desired value > 2304. After typing, DO NOT press Enter or Tab, or click elsewhere. Keep the cursor blinking in the height field, then click the save button next to the template name.

4. After saving, click Cancel. You'll notice it doesn't jump to your saved template, but the template is added to the list.

5. Use this new template. If you clicked OK after saving, it jumps to a template with a *, which is wrong. Use the one without * from the list.

• Note: This method cannot exceed the encoder's maximum limit (e.g., 4096*4096 for NVENC).

Reference: https://www.reddit.com/r/VegasPro/comments/wo1wpr/solution_to_max_height_reverting_back_to_2304/

Q: After rendering, trying to play the project gives error: An error occurred starting playback. No request is enabled for this device.

A: VEGAS requests microphone permission after rendering. If a mic is connected but VEGAS lacks permission, it errors. Fix: Enable microphone permission for VEGAS in Windows Settings. Alternatively, try switching audio devices in Preferences -> Audio Device or clicking All Defaults, then render again to see if it permanently fixes. (Switching once is temporary.) As a last resort, reinstall sound card drivers.

Q: Videos rendered with Voukoder (or built-in templates) look fine locally but show horizontal stripes when uploaded to YouTube/other sites at full resolution?

A: Voukoder auto-matches project properties. In VP17 and below, the default project template has Field order set to Upper field first (interlaced). Local players support deinterlacing, so it looks fine. Sites like YouTube may not, showing interlacing stripes. For Voukoder, change Field order in Project Properties to Progressive (no fields) before rendering. For built-in templates, avoid templates with i in the name; choose those with p.

Q: Built-in render templates lack image sequence options?

A: This bug was fixed in VP19. For older versions, try these (not guaranteed):

1. Install/Reinstall HEIF Image Extensions: https://apps.microsoft.com/detail/9pmmsr1cgpwg.

2. Use the image sequence render script.

• Download link: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/vegas-pro-19-missing-image-sequence-as-a-render-option--133068/?page=3#ca863786

3. Render to another format (.mov), then convert using FFmpeg.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/image-sequence-rendering-option-gone-on-vegas-18--147113/#ca950963

Q: In render templates, wav and avi template output formats changed to .wdp?

A: The only known effective fix is reinstalling Windows via the Windows Update Tool.

• Update Tool: https://www.microsoft.com/software-download

It updates your system to the latest version, taking hours. This method keeps most installed software, files, and settings.

The exact repair principle is unclear.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/avi-files-rendering-as-wdp-in-vegas-pro-10--83436/

Q: [Win7 VP18+] Clicking Render As immediately errors: An error occurred creating media file. Error 0x80131501 (Message missing)

Win7 Render

A: Normally, Win7 only supports up to VP17. VP18+ on Win7 throws this error.

There's a workaround: replace the rendering component DLL in the newer VP install directory with one from an older VP18 build.

This may affect stability, so upgrading to Win10 is advised.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/win-7-rendering-issue-with-the-magix-vegas-482-version--128221/

Download link for 18 build 284 RenderAsDialog.dll: RenderAsDialog.dll

IX. Subtitles Q&A

Q: Subtitle file won't import / imports as garbled text?

A: Open the subtitle file in Notepad, Save As with UTF-8 encoding, then import.

Q: Using "Titles & Text" to edit text. Selected the correct font, but font in Preview window doesn't change, cannot switch fonts?

A: This is a "Titles & Text" issue; its font compatibility is poor.

Solutions:

• Set the font style in a Word document first, then copy-paste into VEGAS Titles & Text.

  • You can use any rich-text editor.

• Or use (legacy) Text or ProType Titler; they are less prone to this.

  • In newer VP, enable them in Preferences -> Deprecated Features.

• In some cases, Windows Unicode settings might be the cause. Go to Control Panel -> Region -> Administrative -> Change system locale, ensure Beta: Use Unicode UTF-8 for worldwide language support is NOT checked.

Windows Unicode Settings

In VP20, the "Titles & Text" feature "Transfer Subtitle Attributes" is also affected, making some fonts unusable with this function.

Q: Clicking menu Insert -> Subtitle from File doesn't open the insert window, no response?

A: A relatively rare bug, seemingly unfixed. It might work one day and stop the next. Currently, the only known fix is resetting preferences.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/insert-subtitles-from-file-doesn-t-open-dialog-box-anymore--137861/

Q: Using "Credit Roll", editing text causes VEGAS freeze/crash?

A: Microsoft Input Method issue. In Microsoft Pinyin Input Method settings, find Compatibility, enable Use previous version of Microsoft Pinyin Input Method.

Q: Importing a text file into "Credit Roll" displays garbled text?

A: Open the text file in Notepad, Save As with ANSI encoding, then import.

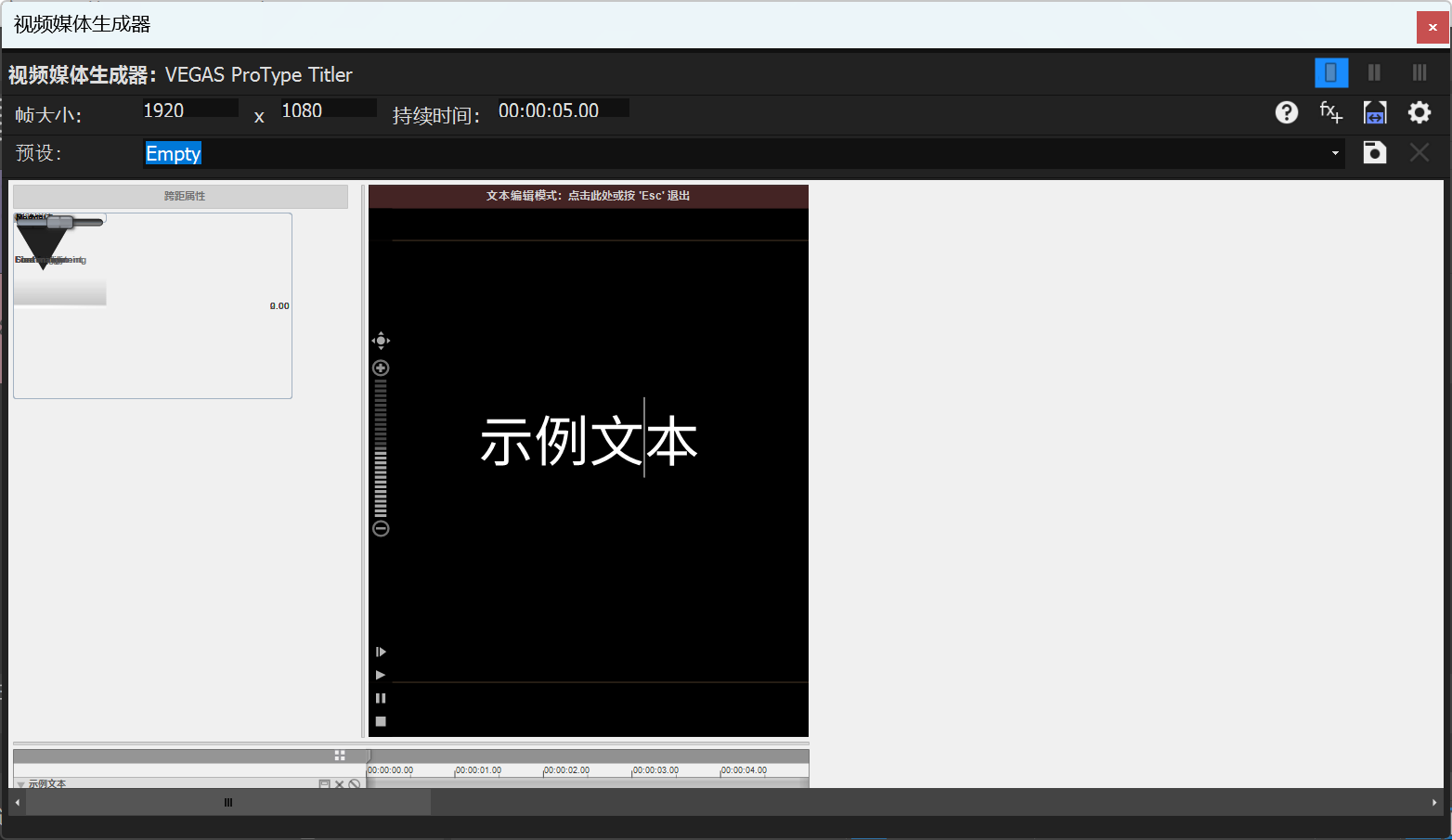

Q: On high-resolution screens, using "ProType Titler" causes UI glitches/tiny unreadable text?

PPT Titler UI Issue

A: DPI scaling issue when system scaling >= 150%. Right-click VEGAS executable/shortcut -> Properties -> Compatibility -> Change high DPI settings. Set Scaling performed by: to System (Enhanced).

High DPI - System Enhanced

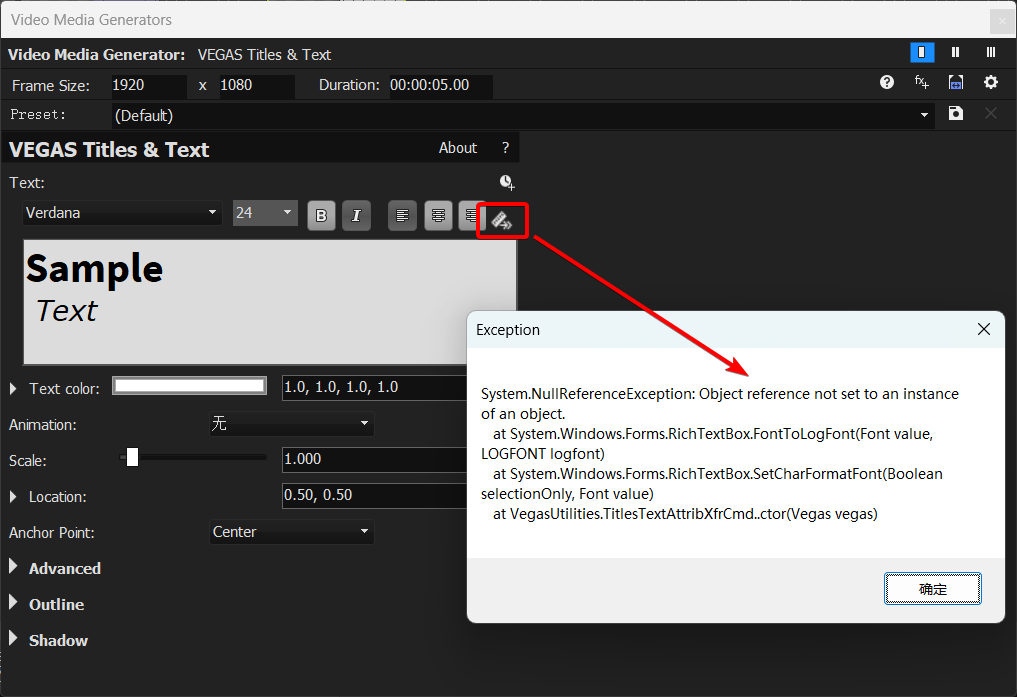

Q: [VP20, VP21] "Transfer Subtitle Attributes" function in Titles & Text errors (as shown)?

Subtitle Attributes Transfer

A: The issue occurs when the text box contains mixed formatting (different fonts, sizes, etc.) that cannot be transferred. Try unifying the text format first before using the function. VP21 final build 315 fixed this. Older versions (including pre-VP20) can use a script I wrote with similar functionality, no error, but also doesn't support mixed formatting transfer. Script installation path see Scripts.

• [Transfer Subtitle Attributes] Script download: https://github.com/zzzzzz9125/VegasScripts/blob/main/Transfer Subtitle Attributes.cs

  • Usage: Select a single "Titles & Text" event on a track, run the script to match other subtitle events on the same track to its attributes.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/bug-while-using-new-update-of-title-text-attribute-paste-function--145461/

Additional Note: (VP18+) How to change the default tool for Insert Text Media:

VEGAS has three main text tools: Titles & Text, (legacy) Text, ProType Titler. Right-click track -> Insert Text Media defaults to "Titles & Text". To use the other two, you must drag them from "Media Generators", which can be cumbersome. Here's how to change the default:

Access Internal Preferences, search for Text Media Generator GUID. Change its value to the GUID of your preferred tool (default is Titles & Text).

GUIDs:

• Titles & Text: {Svfx:com.vegascreativesoftware:titlesandtext}
• (legacy) Text: {0FE8789D-0C47-442A-AFB0-0DAF97669317}
• ProType Titler: {53FC0B44-BD58-4716-A90F-3EB43168DE81}

Knowing the GUID, you can set it to any Media Generator FX's GUID, making "Insert Text Media" create that generator directly.

X. Video Plugin Related

VEGAS video plugins fall into two categories: DirectX Transform (DXT) plugins, developed specifically for VEGAS, and OpenFX (OFX) plugins, a universal standard. Older plugins might be DXT (e.g., NewBlue 2012, Neat Video 3.1.1). Newer plugins are usually OFX. Some legacy VEGAS FX, like Soft Contrast FX, ProType Titler, are also DXT plugins.

The VEGAS Pro Video FX List summarizes all available Video FX in VEGAS Pro, including their Names, Groups, UIDs, and other information, making it easy to search and browse online. Enter here.

VEGAS Plugin Cache Files

• Scan Cache: %localappdata%\VEGAS Pro\23.0\svfx_plugin_cache.bin
• Name Cache: %localappdata%\VEGAS Pro\23.0\plugin_manager_cache.bin
• Thumbnail Cache: %localappdata%\VEGAS Pro\23.0\FX Thumbnails\fx_thumbnail_cache.bin

Where 23.0 is your VEGAS version. Plugin cache stores scanned plugin/FX info. VEGAS stuck at "Creating video plugin factory..." is regenerating plugin cache, scanning for new plugins.

OFX Related Paths

• Common OFX Path: C:\Program Files\Common Files\OFX\Plugins\
• VEGAS-specific OFX Path: ...<VEGAS install path>\OFX Video Plug-Ins\

Note: An OFX plugin may consist of the plugin core and the OFX interface files. The OFX path is for the interface files. Without them, VEGAS won't scan the plugin. Common OFX path plugins are also scanned by other OFX-supporting software (Premiere Pro, DaVinci Resolve). The VEGAS-specific path is scanned only by that VEGAS version.

OFX interface file structure:

<OFX Path>/
├── xxx.ofx.bundle/
│ └── Contents/
│ ├── Presets/
│ │ ├── PresetPackage.xml
│ │ ├── PresetPackage.zh-CN.xml
│ │ └── ...
│ ├── Resources/
│ │ ├── xxx.xml
│ │ ├── xxx.zh-CN.xml
│ │ └── ...
│ └── Win64/
│ └── xxx.ofx
└── yyy.ofx.bundle/
 └── ...

Win64\xxx.ofx is the OFX interface file. Presets\PresetPackage.xml contains built-in presets. Resources\xxx.xml is the language translation file.

Note: Editing OFX paths often requires administrator privileges. For xml files, I recommend Visual Studio Code, which prompts for administrator privileges on save.

After modifying language files, delete the plugin name cache mentioned earlier and restart VEGAS to see changes.

User-saved OFX plugin FX presets: %userprofile%\Documents\OFX Presets\

DXT Related Info

• Built-in DXT Path: ...<VEGAS install path>\Video Plug-Ins\

Strictly, DXT plugins don't have a mandated folder like OFX. They are DLL files requiring registration via regsvr32 xxx.dll. This allows placing external DXT plugins anywhere and registering them for VEGAS to recognize. Useful for manual registration plugins like Route Animation (RouteAnimationX64.dll).

Video Plugin Q&A

Q: Changed VEGAS to other language via registry, but built-in plugin names are still English. How to fix?

A: Delete the plugin name cache mentioned above, restart VEGAS. Or simply reset preferences.

Q: Already uninstalled a plugin, but it still appears in VEGAS FX list, and clicking it crashes?

A: Check if corresponding files in OFX paths are cleaned up. If cleaned and still appears, try deleting the VEGAS plugin cache files.

Q: Browsing to a specific FX in Video FX/Transition FX/Media Generator FX windows causes immediate crash?

A: This is usually a thumbnail loading crash. No direct fix; you can only avoid it. If you don't need that plugin series, find its OFX files (external in common path, VEGAS-built-in in specific path) and remove them. If you still want the plugin series but not that FX, try editing the xml translation file to move it to the end, avoiding accidental selection.
Alternatively, use the FX Search extension VPConsole as a replacement.

Q: Using the plugin search box causes white screen/freeze, making it unusable?

A: With many plugins installed, older VEGAS versions often freeze when using search, taking a long time to recover. VP18 fixed this, so upgrading to VP18+ is recommended for smooth searching.
Alternatively, use the FX Search extension VPConsole as a replacement.

Q: Using built-in AI FX prompts to install VEGAS Deep Learning Models component?
This plug-in requires additional data. Please log into your Service Center account and download the Deep Learning Models component from the My Products section.

A: For newer built-in AI FX, you must install the corresponding version of Deep Learning Models separately.

Official AI Deep Learning Models download: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/faq-where-can-i-download-vegas-pro-and-other-vegas-software--104782/

Q: Built-in LUT Filter FX cannot recognize selected .cube files?

A: Check if the full path to the .cube file contains only [half-width English characters]. If it contains any other characters like Chinese, move the file to a path with only half-width English characters, then reselect it.

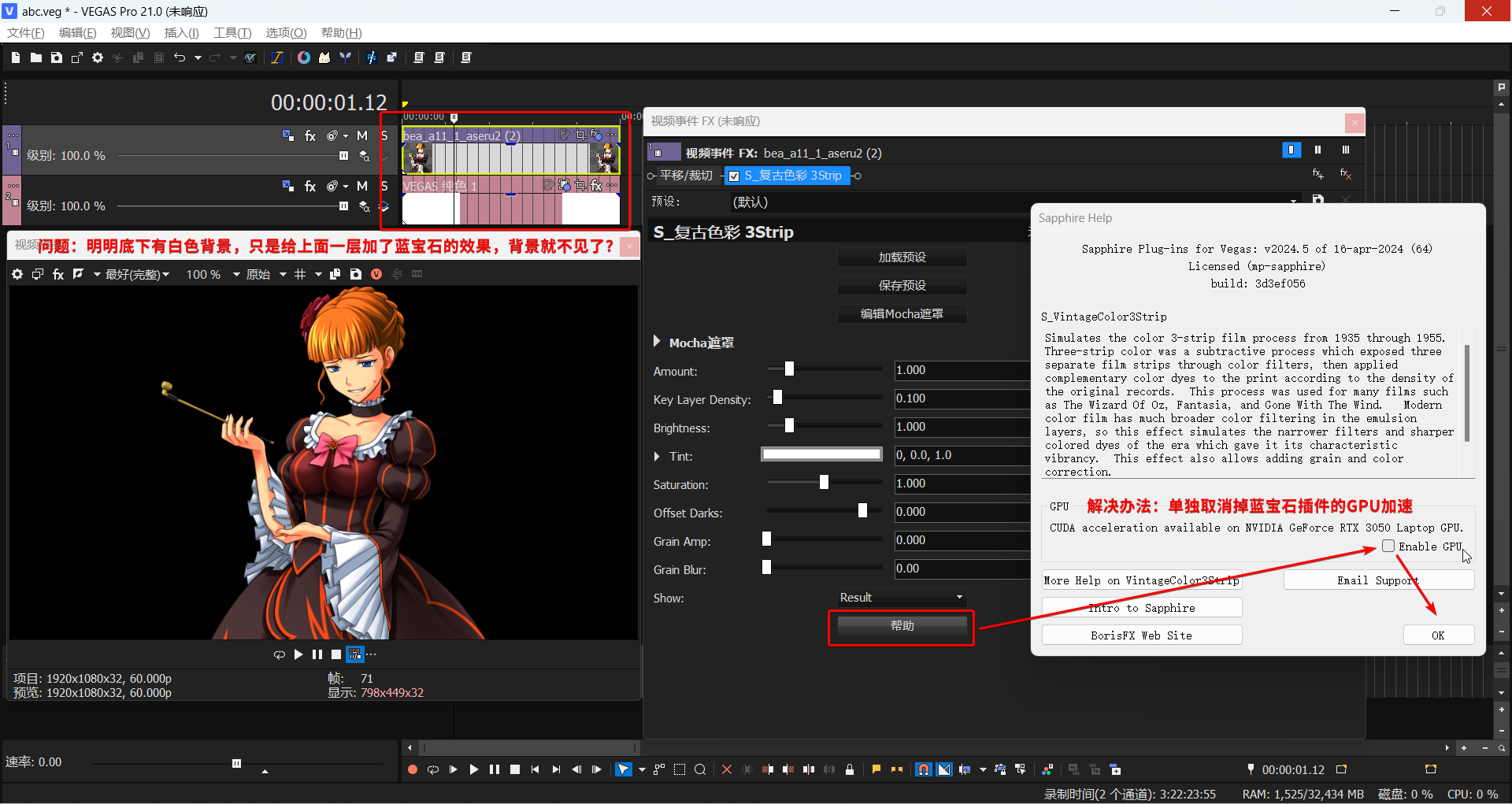

Q: Some Sapphire plugin FX ignore alpha channel, covering the background underneath?

A: As shown, enter the FX's Help and disable its GPU acceleration individually.

Sapphire Alpha Issue

If that doesn't work, disable VEGAS's own GPU Acceleration.

Q: Standalone Mocha works, but OFX plugin version Mocha called via VEGAS crashes?

A: Try rolling back/updating your graphics driver.

Q: [VP21] Adding 3D LUT Creator plugin causes crash/freeze?

A: You can save this FX as a plugin chain in an older VEGAS version, then apply the chain in VP21. This bug is fixed in VP22.

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/crash-when-using-plugins-color-match-ofx-3d-lut-creator-ofx-plugin--144354/

XI. Audio Plugin Related

VEGAS audio plugins fall into two categories: DirectX plugins (older) and VST plugins (current standard). Apart from VEGAS's built-in "no prefix" and ExpressFX series audio FX (which are DirectX), all other audio plugins are VST. The eFX series built into VP16+ are also VST. Older VEGAS supports VST2; VP20+ also supports VST3. No VEGAS version supports VSTi.

VST Related Paths

• Common VST Path: C:\Program Files\VSTPlugins\

If other software changed the common VST path, VEGAS follows that. You can check the registry key HKEY_LOCAL_MACHINE\SOFTWARE\VST, value VSTPluginsPath.

• VEGAS-specific VST Path (VP16+): ...<VEGAS install path>\MAGIX Plugins\ ^{MAGIX 16 and above} or ...<VEGAS install path>\Vegas Plugins\ ^{Boris FX 2026 and above}

You can also manually set VST paths in Preferences -> VST Effects. Older VEGAS limits to 3 paths; VP20+ has no limit.

User-saved VST plugin FX presets:

• %userprofile%\Documents\VST2 Presets\
• %userprofile%\Documents\VST3 Presets\

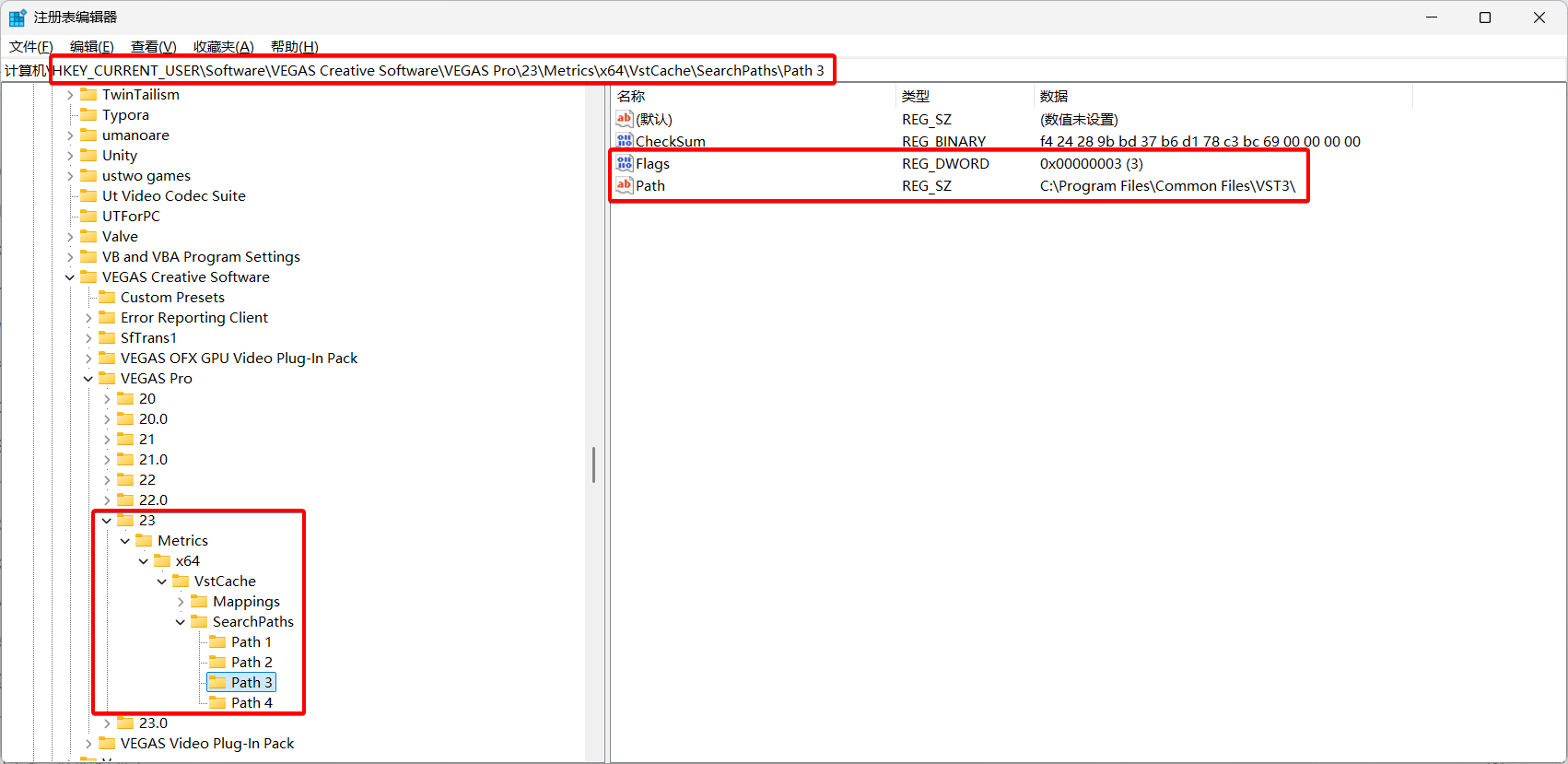

Q: How to edit VST paths externally, not through VEGAS preferences?

A: Go to registry key:

• HKEY_CURRENT_USER\Software\VEGAS Creative Software\VEGAS Pro\23\Metrics\x64\VstCache\SearchPaths ^VP20+
• HKEY_CURRENT_USER\Software\Sony Creative Software\VEGAS Pro\19.0\Metrics\VstCache\SearchPaths ^VP19-
• Where 23/19.0 is your VEGAS version.

There are Path 1, Path 2, etc., corresponding to VST paths in preferences.

VST Registry

CheckSum is for VEGAS to check if rescan is needed; you can ignore it. Focus on Path (absolute path string) and Flags (3 = scan, 0 = don't scan). Modify as needed.

If VST scanning has issues and rescanning via preferences doesn't help, you can delete the Mappings subkey under VstCache, then restart VEGAS to rescan.

Audio Plugin Q&A

Q: Newer versions can't scan 32-bit VST plugins?

A: Preferences -> Audio -> Enable support for 32-bit VST plug-ins (experimental).

Q: In newer versions, some VST plugin GUIs display incompletely?

A: Seems VST2-specific. If the plugin has a VST3 version, use the VST3 version.

Q: DirectX plugins not showing in Audio FX list/showing but invalid when added/plugin becomes Demo version, adding causes beeping?

A: Uninstall VEGAS, then delete all files in C:\Program Files (x86)\VEGAS\Shared Plug-Ins\Audio_x64\ (for VP13-: C:\Program Files (x86)\Sony\Shared Plug-Ins\Audio_x64\), then reinstall VEGAS. (If multiple VEGAS versions, uninstalling one is enough; the uninstall is just to allow reinstallation later.)

Reference: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/less-audiofx--143986/

Q: After adding a Limiter FX (built-in eFX_Limiter or other VST limiter) to the Master bus, adding pan envelopes and envelope points to any audio track causes crackling/zipper noise?

A: A weird bug occurring when pan envelope point type is Smooth or Sharp. Fix: Change the envelope point type to another.

XII. Scripts/Extensions Related

VEGAS supports custom scripts in C# (or JScript, Visual Basic) to optimize workflows.

• Script: Must be run manually by the user; relatively simple functionality.

• Extension: Can run automatically when VEGAS starts. Enables more complex features, like creating dockable windows within VEGAS.

This section only covers installation issues. For tutorials, see: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/vegas-pro-scripting-faqs-resources--104563/

Valid Script Installation Paths:

C:\ProgramData\VEGAS Pro\Script Menu\
C:\ProgramData\VEGAS Pro\23.0\Script Menu\
%userprofile%\Documents\Vegas Script Menu\
%appdata%\VEGAS Pro\Script Menu\
%appdata%\VEGAS Pro\23.0\Script Menu\
%localappdata%\VEGAS Pro\Script Menu\
%localappdata%\VEGAS Pro\23.0\Script Menu\
...<VEGAS install path>\Script Menu\

Valid Extension Installation Paths:

C:\ProgramData\VEGAS Pro\Application Extensions\
C:\ProgramData\VEGAS Pro\23.0\Application Extensions\
%userprofile%\Documents\Vegas Application Extensions\
%appdata%\VEGAS Pro\Application Extensions\
%appdata%\VEGAS Pro\23.0\Application Extensions\
%localappdata%\VEGAS Pro\Application Extensions\
%localappdata%\VEGAS Pro\23.0\Application Extensions\

Where 23.0 is your VEGAS version. The first path (C:\ProgramData\...) is my top recommendation. Note: ProgramData is a hidden folder by default. For Sony-era (VP13-) paths, add a Sony folder above VEGAS Pro, e.g., C:\ProgramData\Sony\VEGAS Pro\Script Menu\.

Due to API changes in history, scripts/extensions for SonicFoundry era, Sony-era (VP13-) and MAGIX-era / Boris FX era (VP14+) VEGAS are not directly compatible. Very ancient SonicFoundry-era uses SonicFoundry.Vegas namespace; relatively ancient Sony-era uses Sony.Vegas; morden MAGIX-era / Boris FX era uses ScriptPortal.Vegas. For source code files (.cs, .js, .vb), you can edit the namespace manually in a text editor. For pre-compiled .dll files, you must modify the source project and recompile.

General Steps to Install a Script or Extension

Using extensions as an example; similar for scripts. For other paths, see the lists above.

1. Copy C:\ProgramData\VEGAS Pro\ (or, for Sony editions, C:\ProgramData\Sony\VEGAS Pro\) and paste into File Explorer's address bar to navigate.

2. Check if the Application Extensions folder exists. If not, create it with the exact name. Enter the folder.

3. Copy all required .dll files for the extension and paste them directly here. E.g., C:\ProgramData\VEGAS Pro\Application Extensions\UltraPaste.dll.

   • Some scripts/extensions may include 16*16 .png icon files. You can optionally place these. Icons appear in VEGAS menus/toolbars for identification.

4. If some scripts/extensions require additional installers, please follow the installation steps they provide.

XIII. Project File Backup and Recovery

Most important advice upfront:

This section helps with situations like saved project file disappearing/corrupt, software crash before saving, etc.

1. The .veg.bak File Beside Your Project

This is a backup from the second-to-last save. To recover, rename the .veg.bak file to .veg and open in VEGAS. If you rarely save manually, this backup could be very old.

2. VEGAS's Default 5-Minute Auto-Save

VEGAS auto-saves every 5 minutes for crash recovery.

Standard recovery method: After a crash, don't open the original project directly. Run VEGAS, start a new empty project. VEGAS should prompt "Project recovery available". Recover from there.

This method is somewhat cumbersome. If you open the original project directly, the prompt won't appear. If you then modify the original project, it might overwrite the auto-save file, making recovery via this method impossible. Therefore, I recommend manually locating the auto-save files.

Simple method: Go to the VEGAS Cache Directory (%localappdata%\VEGAS Pro\) (or simply search autosave on C:), sort by date, find .veg or .veg.bak files, copy them out, rename to .veg as in 1, open, verify, then save elsewhere.

The default auto-save interval is 5 minutes. To change, go to Internal Preferences, search for msAutoSaveInterval. Default is 300000 milliseconds. Change as desired.

3. Advanced Save (VP16+)

My current top recommendation for project recovery, but requires prior setup.

Advantages:

• Backup files are saved in the same directory as the project, no need to search the cache directory.

• Easy adjustment of backup intervals.

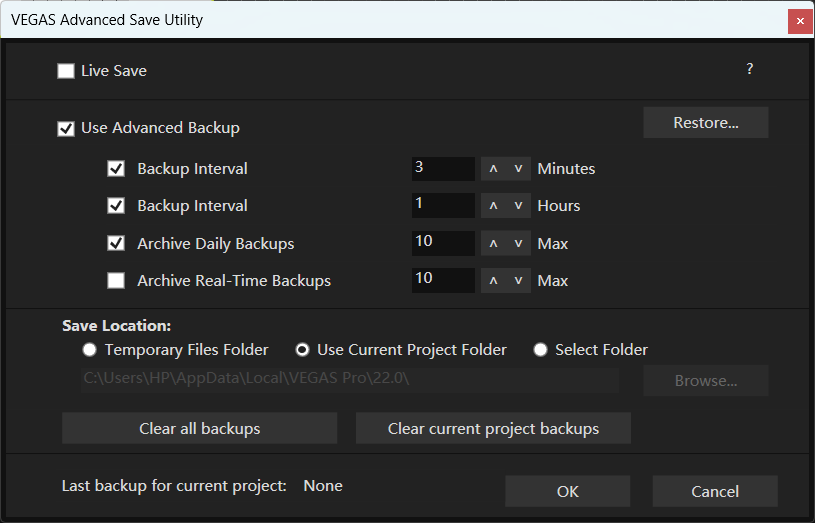

Advanced Save

Menu: Tools -> Advanced Save.

Two functions: Live Save and Advanced Backup.

• Live Save: Saves after every single operation, ensuring the project file is always up-to-date.

  • Because it saves after every action, it can cause significant lag on large projects, so it's NOT recommended.

• Advanced Backup: Creates additional .veg backup files.

  Several tiers: Minute/Hour/Daily/Live.

  • Minute backups: Saves 1 .veg backup every x minutes, keeping only backups from the last hour. Older backups auto-delete.

  • Hour backups: Saves 1 .veg backup every x hours, keeping only backups from the last 10 hours. Older auto-delete.

  • Daily backups: Saves 1 .veg backup when opening/closing VEGAS each day. Keeps a maximum of x backups; oldest deleted when exceeded.

  • Live backups: Saves a backup after every operation as a separate .veg file. Keeps a maximum of x backups; oldest deleted when exceeded. Like "Live Save", can cause lag on large projects, NOT recommended.

Note: These backup tiers are independent.

• Minute backups go to MinorBackups folder in the specified directory.

• Hour backups go to MajorBackups.

• Daily backups go to CriticalBackups.

• Live backups go to RealtimeBackups. Enabling Live backups disables other tiers.

Enabling Advanced Backup disables the default 5-minute auto-save feature.

For other questions, click the question mark in the top-right of the Advanced Save window for help documentation.

4. Use Incremental Save (VP18+)

Incremental Save, available since VP18, shortcut Ctrl + Alt + S. Similar to "Save As" but more convenient; automatically saves as a new file with an incremental number, not overwriting the original. You can remap the shortcut via Options -> Customize Keyboard.

5. Manually backup project files periodically

XIV. Downgrading Project Versions

Normally, newer VEGAS can open older project files with good compatibility. Older VEGAS cannot open newer project files. This section provides methods to downgrade project versions.

1. VEGAS Project File Version Downgrade Tool

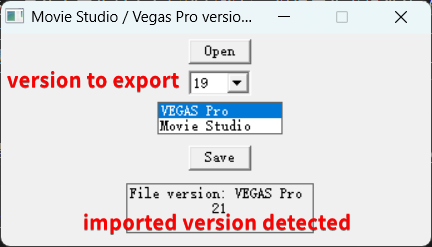

MSVPVF

Original project link: https://sr.ht/~mrpapersonic/msvpvf/

This tool modifies the version identifier inside the project file to downgrade it. However, it doesn't adjust the project's structure. Therefore, even if the version identifier is lowered, the file will often show as corrupted and fail to open. The author introduces the concept of "generations", suggesting downgrade compatibility only exists within the same generation: VEGAS projects cannot be downgraded across generations, only within the same generation. Based on the author's concept and my testing, generation boundaries are roughly: 8 - 11 | 12 - 14 | 15 - 16 | 17 | 18 | 19 - 21 build 208 | 21 build 300 - 22 | 23. (Differences between minor build numbers can create further splits, so this is approximate.) The middle range is quite fragmented, making this tool of limited practical use, though it works for specific version pairs.

VEGAS Project File Version Downgrade Tool compiled by me download link: https://github.com/zzzzzz9125/msvpvf/releases/

The following methods aren't true version downgrades but transfer project content.

2. Cross-Version Copy-Paste Method

VEGAS supports multiple instances. You can copy-paste events between projects in different instances. This can be used to copy-paste content across VEGAS versions by running multiple versions.

This method works across a wider range than the tool above but only copies events, not entire tracks with their properties.

3. Cross-Version Plugin Chain Method

See Using, Importing, and Exporting VEGAS Plugin Chain Presets in Chapter II. By saving plugin chains, you can transfer audio/video FX chains from one project/version to another. Plugin chains support FX on various positions but cannot be batch-applied; must be saved/loaded individually per chain. Often used with Method 2: Method 2 transfers events, Method 3 transfers track FX.

Version downgrading inevitably causes compatibility issues, mainly in two areas:

• New features. For example, VP21's "Adjustment Events" become empty events in older versions; VP20's updated VST engine makes its VST FX unrecognizable in older versions, etc.

• Internal API or GUID changes. For example, VP13 (Sony) and VP14 (MAGIX) are a dividing line; they can't cross-copy-paste. VP17 changed the GUID prefix for all built-in OFX from sonycreativesoftware to vegascreativesoftware, making those FX unrecognizable in older versions.

Version upgrades generally don't have these issues.

XV. Other Q&A

Q: VEGAS generates a .sfk file next to imported media. Any way to hide it?

A:

• Old versions: No. .sfk is the audio peak file. VEGAS has no setting to store .sfk files elsewhere; they must be beside the media file. Deleting manually causes regeneration when reopening the project.
  Even Sound Forge can directly hide peak files, but Vegas can't. Isn't this a bit...

• New versions (21 build 300+): Preferences -> General, two new options: Do not create .sfk files to store peak data and Hide new .sfk files. Checking only the second hides new .sfk files (visible if "Show hidden files" is enabled). Checking the first prevents .sfk generation entirely (peak data recreated on project open, usually fine), recommended.

Q: After importing audio/video, audio waveform is not visible, shows "Peaks unavailable", but audio plays?

A: If media files are in a folder requiring administrator permissions, VEGAS cannot generate .sfk files, causing Peaks unavailable. Solution: Move media files to a folder not requiring administrator privileges.

Also, for info on .sfk, .sfl, .sfap0, .sfvp0 files, see: https://vegasaur.com/sweeper

XVI. Software Purchase Channels

1. VEGAS Official Website: https://www.vegascreativesoftware.com/us/

• Vegas Pro is now under Boris FX, developed and managed by Boris FX. The official Boris FX website only sells the latest version of Vegas. In terms of pricing bundles, there are currently three editions: the Standard Edition (Vegas Pro), the Plus Edition (Vegas Pro Plus), and the Ultimate Edition (Vegas Pro Ultimate). The Standard Edition includes the Vegas Pro software itself and a portion of the Boris FX Continuum plugins, while the Plus and Ultimate Editions include more additional software and plugins. On top of this, for the Standard and Plus Editions, there are also perpetual licenses (Permanent) and subscription plans (Subscription). The versions provided by Boris FX need to be installed via the Boris FX Hub. During installation, the software may not be installed in your desired language, but you can locate the installer program, uninstall it, and then reinstall it. The standalone installer program offers language options.

• Magix Official Installer Links: https://web.archive.org/web/https://www.vegascreativesoftware.info/us/forum/faq-where-can-i-download-vegas-pro-and-other-vegas-software--104782/

2. Some Regional Agents, e.g., Japan: https://www.sourcenext.com/product/vegas/video/vegas-edit/

• Cheaper than official site, but might force you to use Japanese.

3. Steam Edition: https://store.steampowered.com/app/4006040/

• VP23 priced at $199 in USA. However, Steam edition does not allow multiple instances, doesn't support manual registry changes for language, and lacks cloud services like Text-to-Speech/Speech-to-Text and VEGAS Hub.

4. Occasional deep-discount bundles on sites like Humble Bundle, Fanatical.

• Priced around $20-30. Typically includes VEGAS Pro version two versions behind the current latest, plus bundled content. Also qualifies for official upgrade discounts. For example, when latest is 21, they sell 19. Sales are infrequent and brief, with varying bundle content.

XVII. VEGAS Communities/Forums

VEGAS Pro Official Forum: https://forum.borisfx.com/c/vegas-pro/55

VEGAS Pro Reddit: https://www.reddit.com/r/VegasPro/
